EMERA – CYBORG Tourbillon Super Structurae Edition

EMERACYBORG Exoskeleton Tourbillon Super Structurae Titanium Special Edition

Click, to see the large size. BIG FOTO

EMERA CYBORG - NEW ERA IN ULTRAHAUTE HORLOGERIE
 A NEW ERA IN ULTRA HAUTE HORLOGERIE

Click, to see the large size. BIG FOTO

EMERA is the result of two watchmaking professionals’ collaboration and hard work.

Click, to see the large size. BIG FOTO

 Click, to see the large size. BIG FOTO

Two ultra-passionate individuals – a visionary designer (Patrick Freiburghaus) and a genius watchmaker (Cyrano Devanthey).

Click, to see the large size. BIG FOTO

Click, to see the large size. BIG FOTO

They create timepieces without concessions and go to the limits of the possibilities of today in terms of aesthetics and manufacturing.

A MOVEMENT WITH HYPER SHAPES

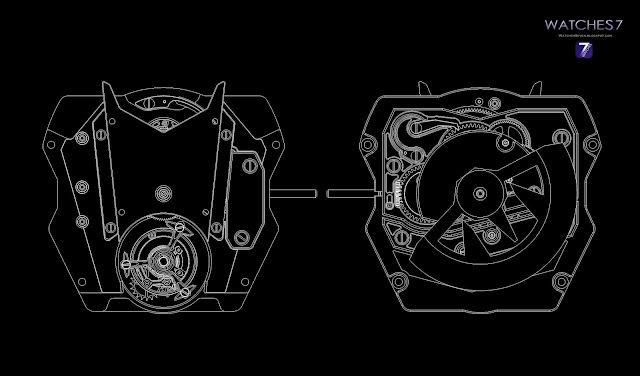

The 60 seconds tourbillon, designed exclusively for the case of the Cyborg model, is the first chapter of future super movements from their workshop.

Click, to see the large size. BIG FOTO

The innovative aesthetics and the architecture of the movement are the fruit of the close collaboration between the Designer and the Watchmaker.

Click, to see the large size. BIG FOTO

This “engine” is machined with extreme precision and the decorations are applied by hand. The movement provides a power reserve of 44 hours and is composed of 177 individual components. Its heart beats at a frequency of 4 Hz / 28’800 vibrations per hour.

Click, to see the large size. BIG FOTO  Its geometry is designed exclusively to fit the case of the Cyborg Exoskeleton watch. This way, the perfect match between the shape of the case and the lines of the movement could be achieved. The uniqueness of the case goes hand in hand with the custom-engineered movement.

DESIGN AND DISRUPTIVE LINES

Click, to see the large size. BIG FOTO

EMERA offers audacity and watchmaking tradition in the same timepiece with its new creation. The CYBORG timepiece is an ode to the future with a remarkable design. Each fraction is in balance with the whole design.

Click, to see the large size. BIG FOTO

The aesthetics and shapes open new paths in watchmaking. However, the unconventional dial, which offers a constellation of novelties, does not show the movement, even if there is nothing to be hidden in the in-house tourbillon movement.

Click, to see the large size. BIG FOTO

Click, to see the large size. BIG FOTO

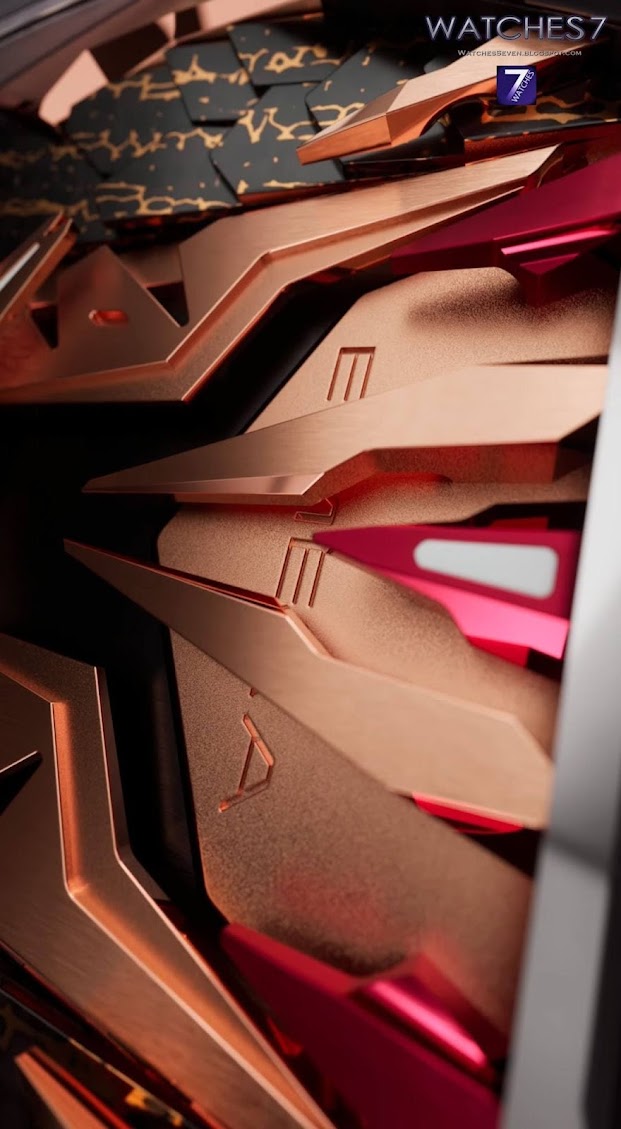

The Dial comprises 40 carbon scales with a thickness of just 0.30 mm. The “Reptile Gold” carbon composite design is inspired by the captivating patterns found on exotic snakes.

Click, to see the large size. BIG FOTO

The carbon fiber also contains bronze particles which enhance the sparkling and shimmering characteristics of the material.

Click, to see the large size. BIG FOTO

Besides the known qualities of carbon fiber, like lightweight, strength, corrosion resistance, and dimensional stability, it offers a unique pattern.

Click, to see the large size. BIG FOTO

Like snowflakes, no scale is identical to one another. This uniqueness of each scale makes every watch an individual piece and simultaneously gives the timepiece its mechanical and animalistic look.

ONLY SWISS DNA

All case and movement components are engineered and manufactured in Switzerland. The assembly takes place in Emera’s workshop to ensure the highest quality.

Click, to see the large size. BIG FOTO

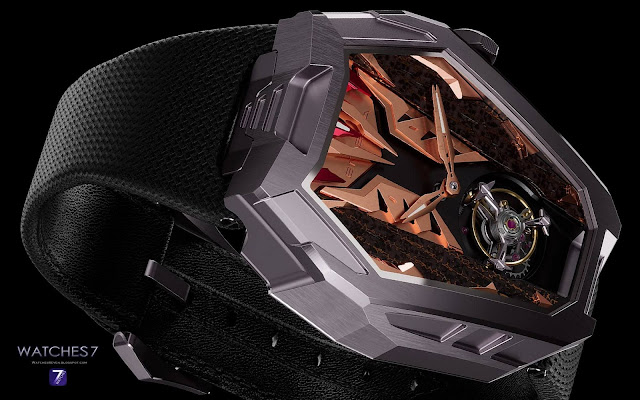

The case is equipped with two sapphire crystals. The second sapphire crystal, located at 6 o’clock, allows technically minded individuals to observe the fascinating tourbillon from a different angle.

Click, to see the large size. BIG FOTO

The hypercar-inspired case-back is an attraction of its own with the shapes that remind vent openings for the engine. The engine underneath, the in-house tourbillon movement, is protected from its environment by a titanium case. Great care is taken to decorate every single component, even if not visible.

Click, to see the large size. BIG FOTO

Designed to be comfortable on the wrist, the pin buckle has an aerodynamic shape where soft and aggressive lines are combined. The case and the buckle are made from Grade 5 Titanium.

Click, to see the large size. BIG FOTO

The alternation between polished, bead-blasted, and satin-finished surfaces enhances the intricate details of the design. Special care of the details has been taken for every component. Not only at the time of manufacturing but also before that. Even the raw material for the sapphire crystal is made in Switzerland.

Click, to see the large size. BIG FOTO

In their quest to work with the best specialist in their field, a leather-good workshop makes bracelets in Paris with a long tradition, where the knowledge is inherited from father to son for many generations.

-----------------------------------------
TECHNICAL SPECIFICATIONS

CollectionCYBORG

Design / Engineering        Patrick Freiburghaus / Cyrano Devanthey
Model Ref.                        EP 01 / Cyborg Exoskeleton Tourbillon Super Structurae

Movement                         Ref. MRA 01 / In-house, Mechanical, automatic winding
Functions                          Hours, Minutes, Flying Tourbillon Sixty Seconds
Tourbillon cage                Including balance wheel and escapement 0.35 grams / 51 components
Components                     177
Jewels/bearings         19 / 2 (with seven ceramic spheres each)
Frequency                        4 Hz (28’800 vibrations per hour)
Power reserve            44 hours
Dial                                   40 carbon scales, Rose gold plated (5N) and Ruthenium, Atomic layer deposition colors
Hands                            Rose gold plated (5N)
Crystals                         Sapphire crystals (2)
Case                                  Titanium grade 5
Dimensions                      46.80 x 56.60 mm 15.90 mm
Water Resistance
           3 ATM
Strap                                Black high-tech fabric
Clasp                                Pin-buckle in titanium grade 5

🔰Serie                           Ultra-limited series of 9 pieces / 100% Swiss Made
Official launch                December 17, 2022
Inspiration                      Robots, Supercars, Reptiles


🔴 Price excl. Tax          CHF 295’000.00💰

-------------------------------
