ARNOLD & SON - TE8 Métiers d’Art I Tourbillon Limited Edition

















ARNOLD & SONTE8 Métiers d’Art I Tourbillon Limited Edition NEW


Click on the mouse wheel to see the large size ...




























True to its English watchmaking and handcraft heritage, Arnold & Son unveils the TE8 Métiers d'Art I, limited to only eight exclusive timepieces. Inspired by the pocket watches made during the earlier part of John Arnold's life for King George III and the royal court, the latest addition to the Arnold & Son Royal Collection is an eloquent expression of elegance and sophistication in the inimitable English style and demonstrates the brand's traditional prowess in the classical decorative arts.



The tourbillon, one of the most elegant complications in the world of horology, has played a crucial role in Arnold & Son's history. An exceptional watchmaker, John Arnold was an active participant in one of the most extraordinary partnerships in the world of innovative horology. Indeed, both he and A.-L. Breguet worked closely, sharing both their knowledge and passion. Evidence of their partnership is A.-L. Breguet's first ever tourbillon mounted in John Arnold's No. 11 movement, a watch that can be found today in London's British Museum.

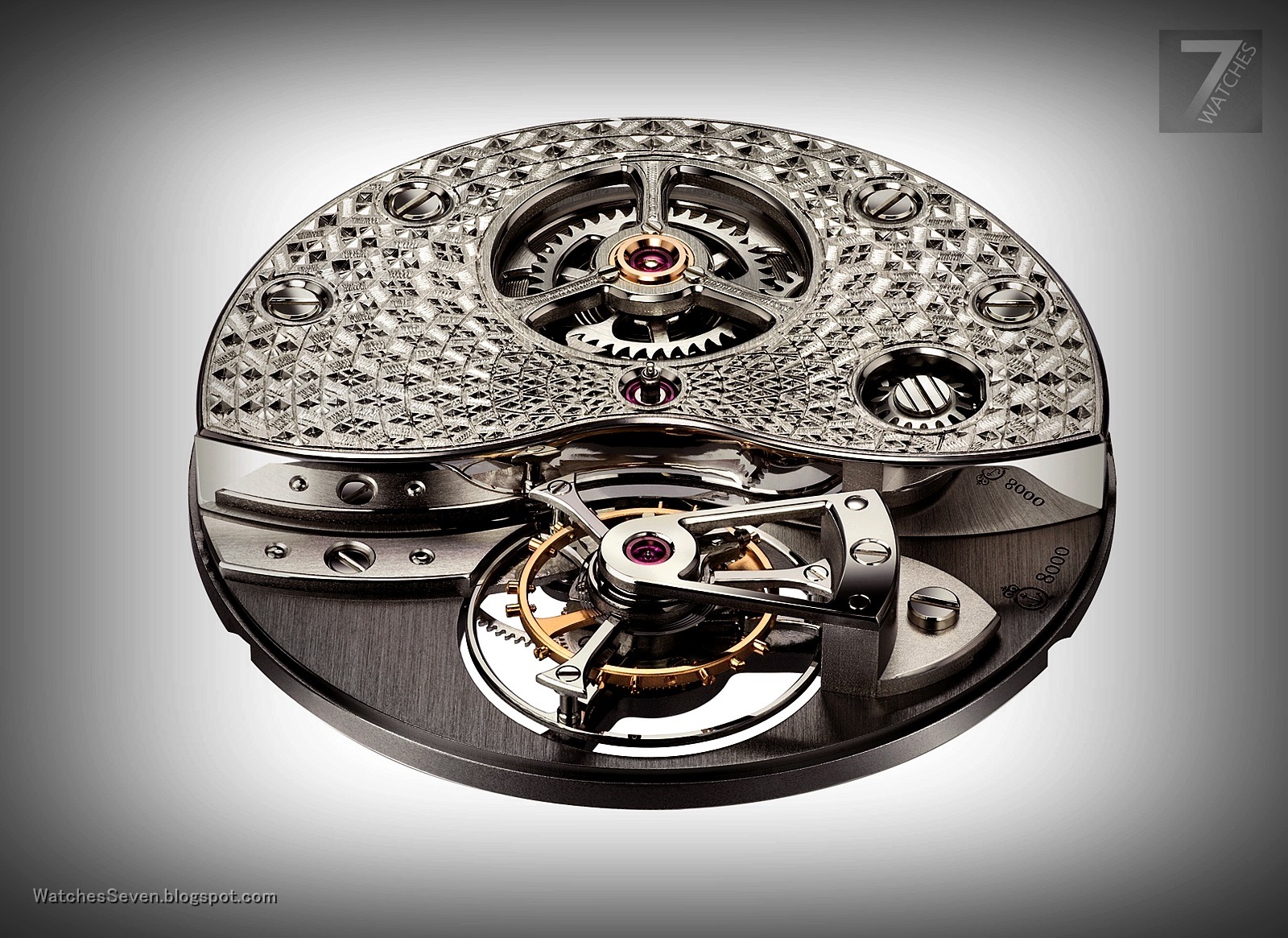

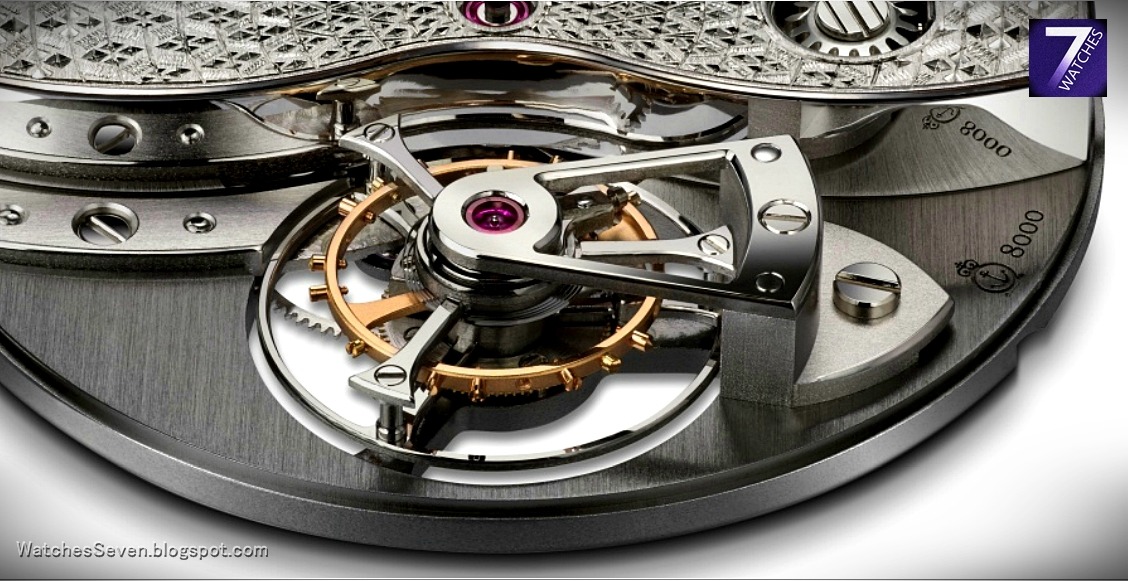

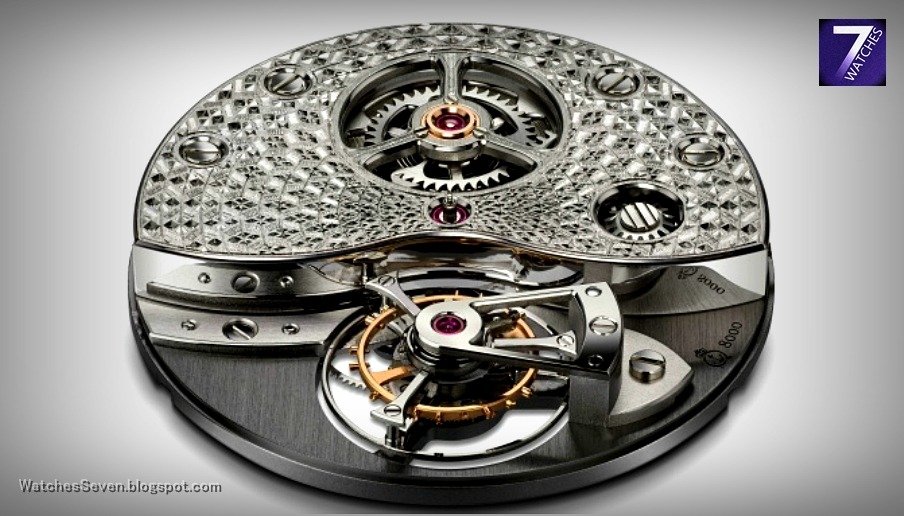

What sets Arnold & Son's new Tourbillon TE8 esthetically and technically apart is its unique "English" design: the barrel bridge has a ¾ wave-shape, the tourbillon and motion-work bridges are triangular, and even the wheels are shaped with a distinctive three-spoke design. This same design cue can also be found on the tourbillon cage and the barrel bridge as well.

 Click on the mouse wheel to see the large size ...  BIG FOTO

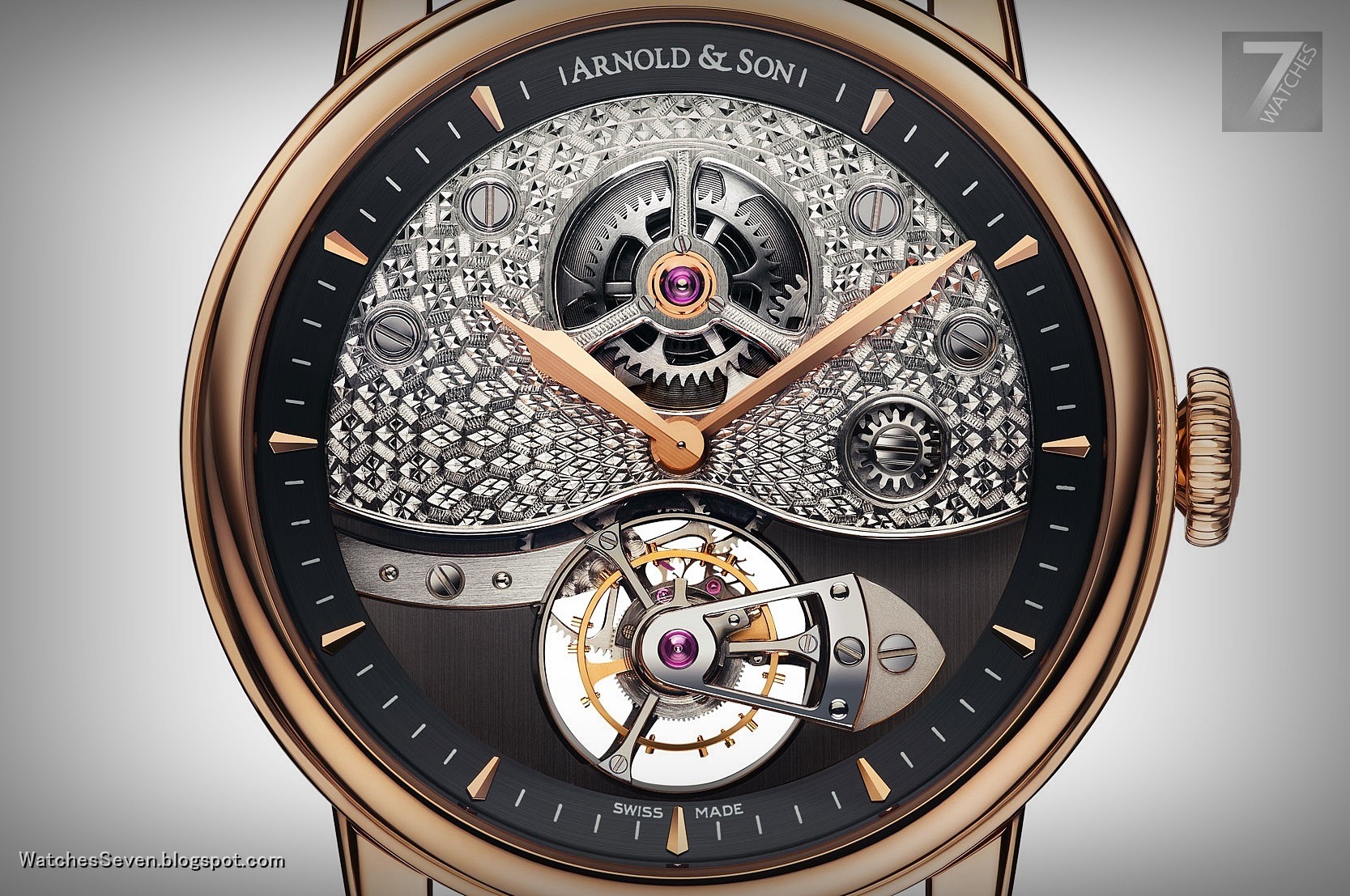

When compared to more conventional tourbillons found today, the TE8 model is said to be "inverted", that is to say most technical elements and visually interesting features are shown on the dial side, when those would normally be hidden on the reverse of the dial. Other typically English technical idiosyncrasies will seduce even the most demanding watch connoisseurs.

 Click on the mouse wheel to see the large size ...  BIG FOTO

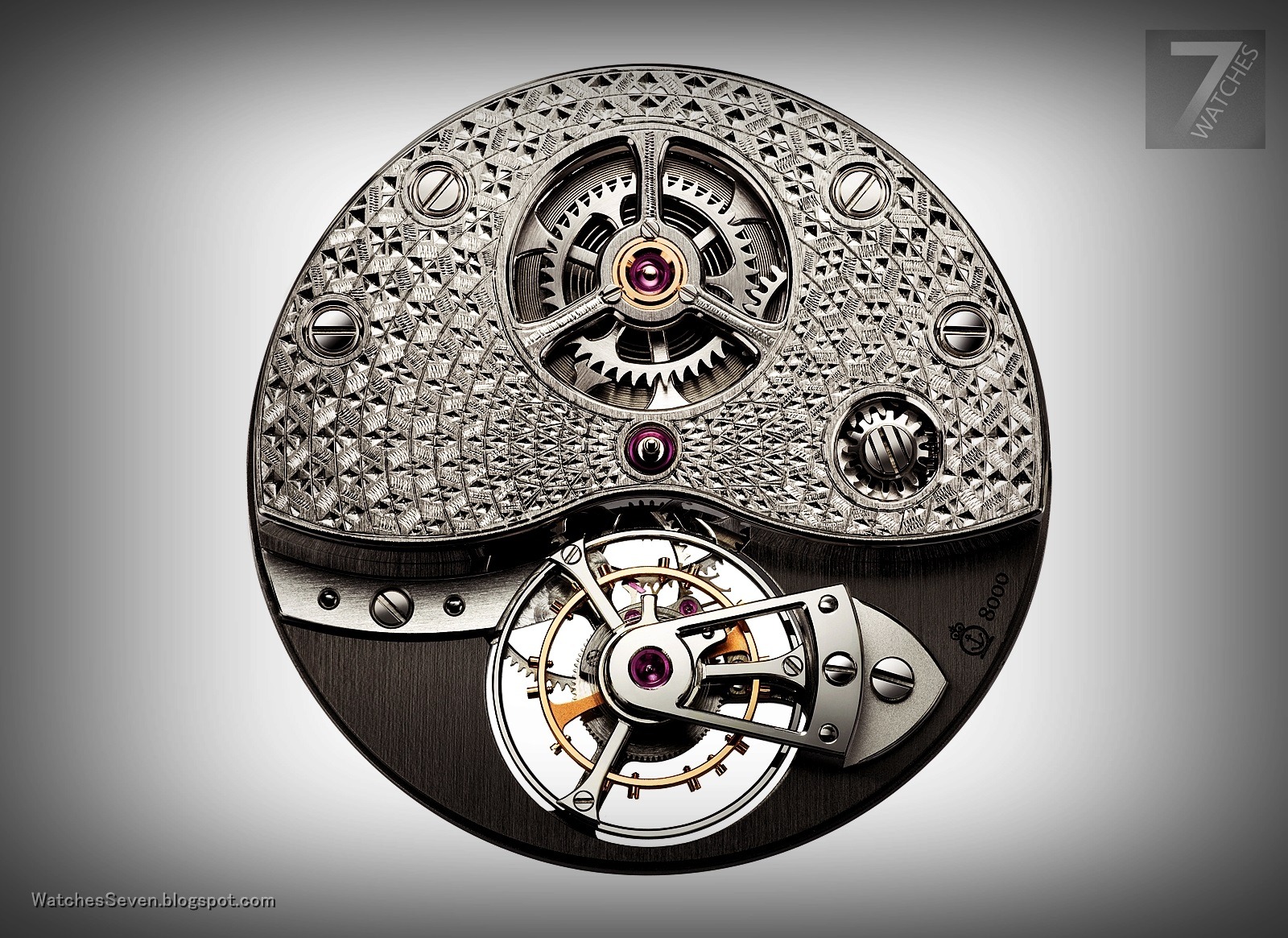

Take, for instance, the symmetrical layout of the movement; to achieve such a feat requires overcoming a number of technical challenges. Thus the barrel spring and the tourbillon cage are centered along the watch's longitudinal axis. When examining the winding system and the gear train, one notes the traditional construction, which uses wheels with long and narrow spokes known as wolf's teeth, used to improve the smoothness of the overall movement.


Click on the mouse wheel to see the large size ...       BIG FOTO
















Calibre: A&S8000
Exclusive Arnold & Son mechanical tourbillon movement, hand-Wound, 19 jewels, diameter 32.6 mm, thickness 6.25 mm, power reserve 80 h, 21'600 vibrations/h
Movement decoration: hand-engraved nickel silver movement, rhodium treated bridges and NAC grey treated main plate with Haute Horlogerie finishing: manually chamfered bridges with polished edges, hand-engraved, fine circular graining, screwed gold chatons, mirror-polished tourbillon cage and bridge, screws with bevelled and mirror-polished heads

 Click on the mouse wheel to see the large size ...  BIG FOTO

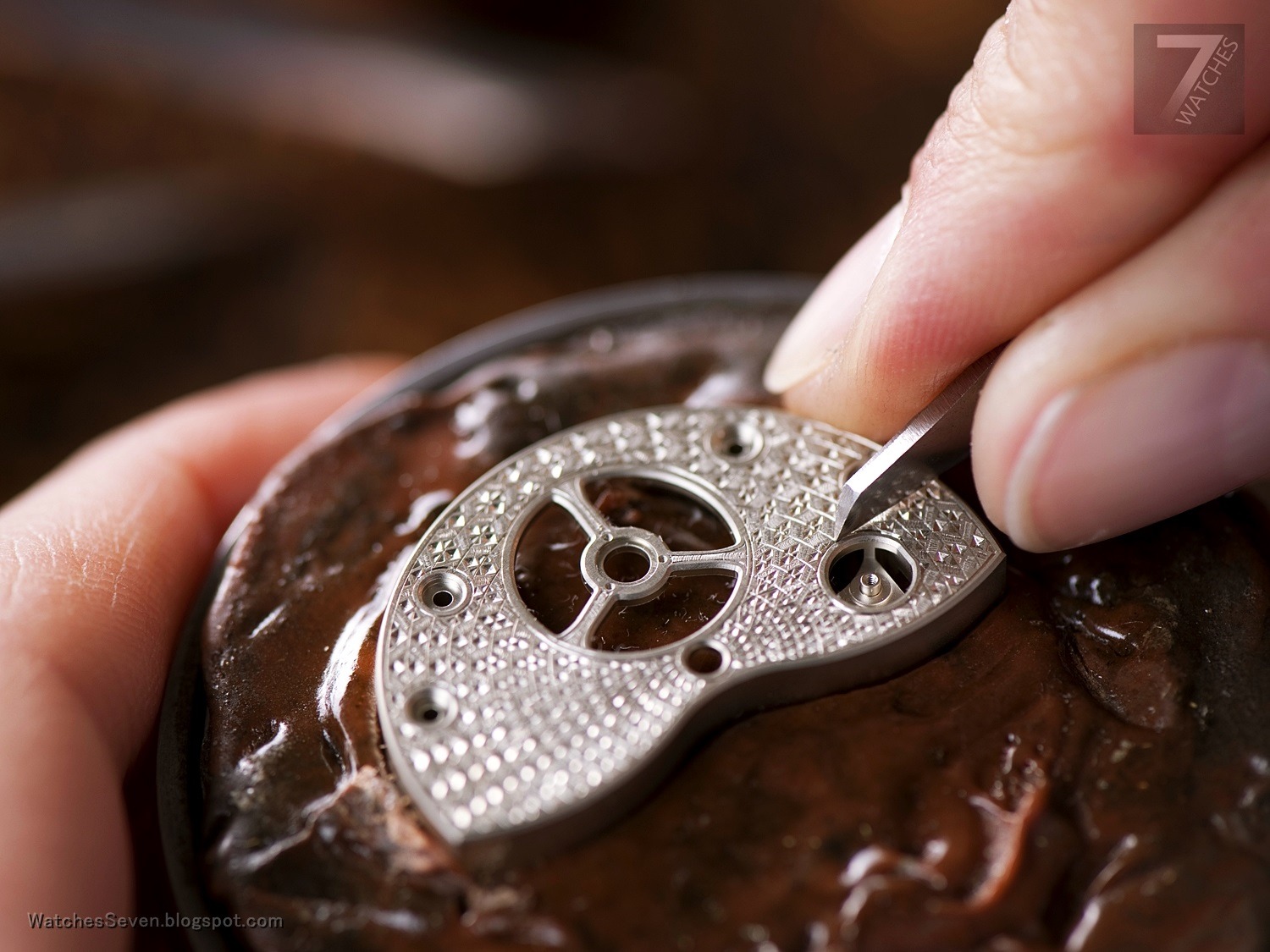

Each single TE8 Métiers d'Art I is hand-engraved by Arnold & Son's own master engraver, who went as far as to create a new engraving pattern solely for this special edition. This new pattern is composed of complex geometrical elements arising from the center of the movement. The engraving of this masterpiece is particularly painstaking as the movement is made of German Silver and not usual brass. Due to the hardness of German Silver, the engraver must pay great attention not to slip off and constantly sharpen his tools, as their wear and tear is very high.

  Click on the mouse wheel to see the large size ...  BIG FOTO

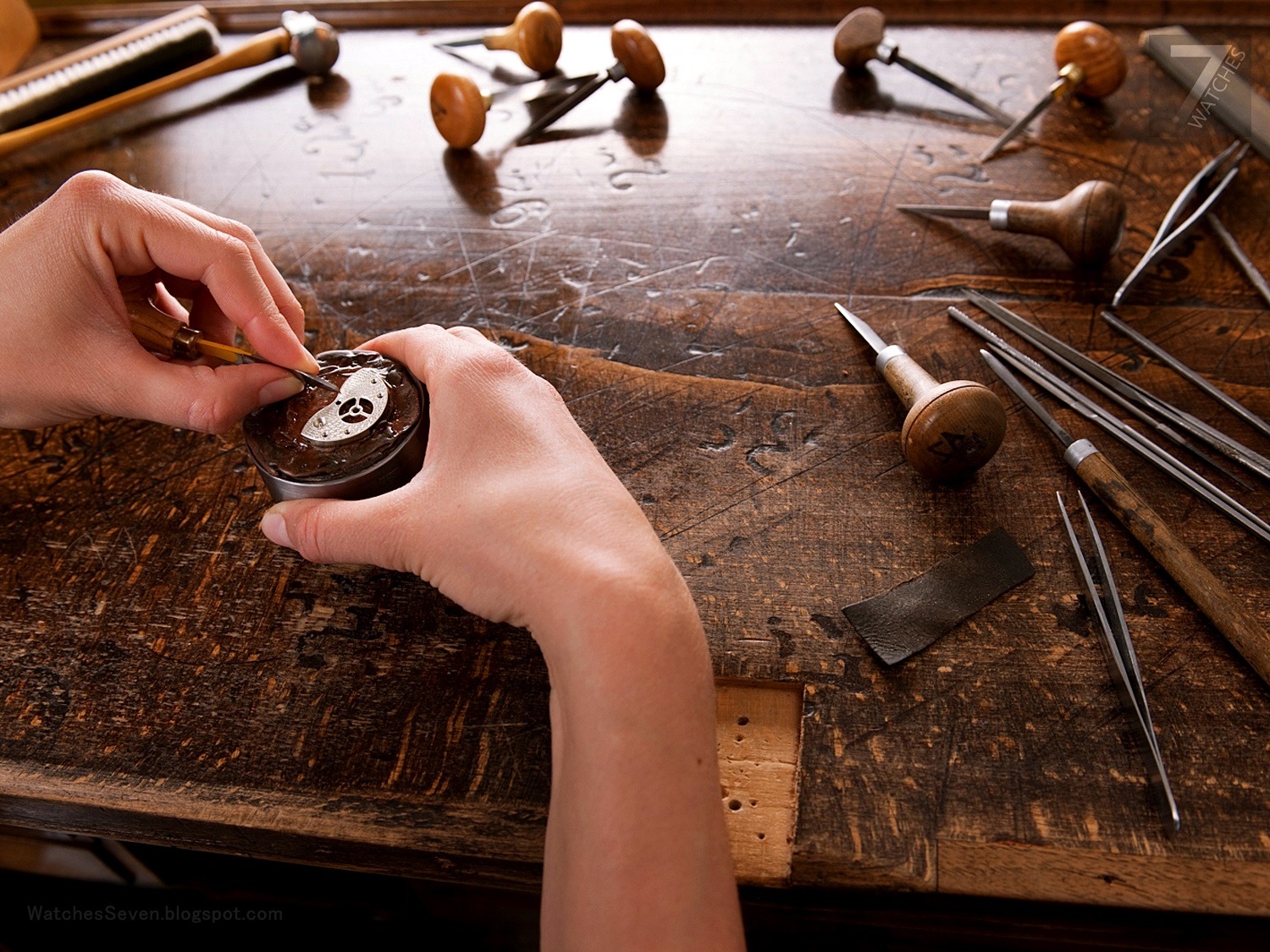

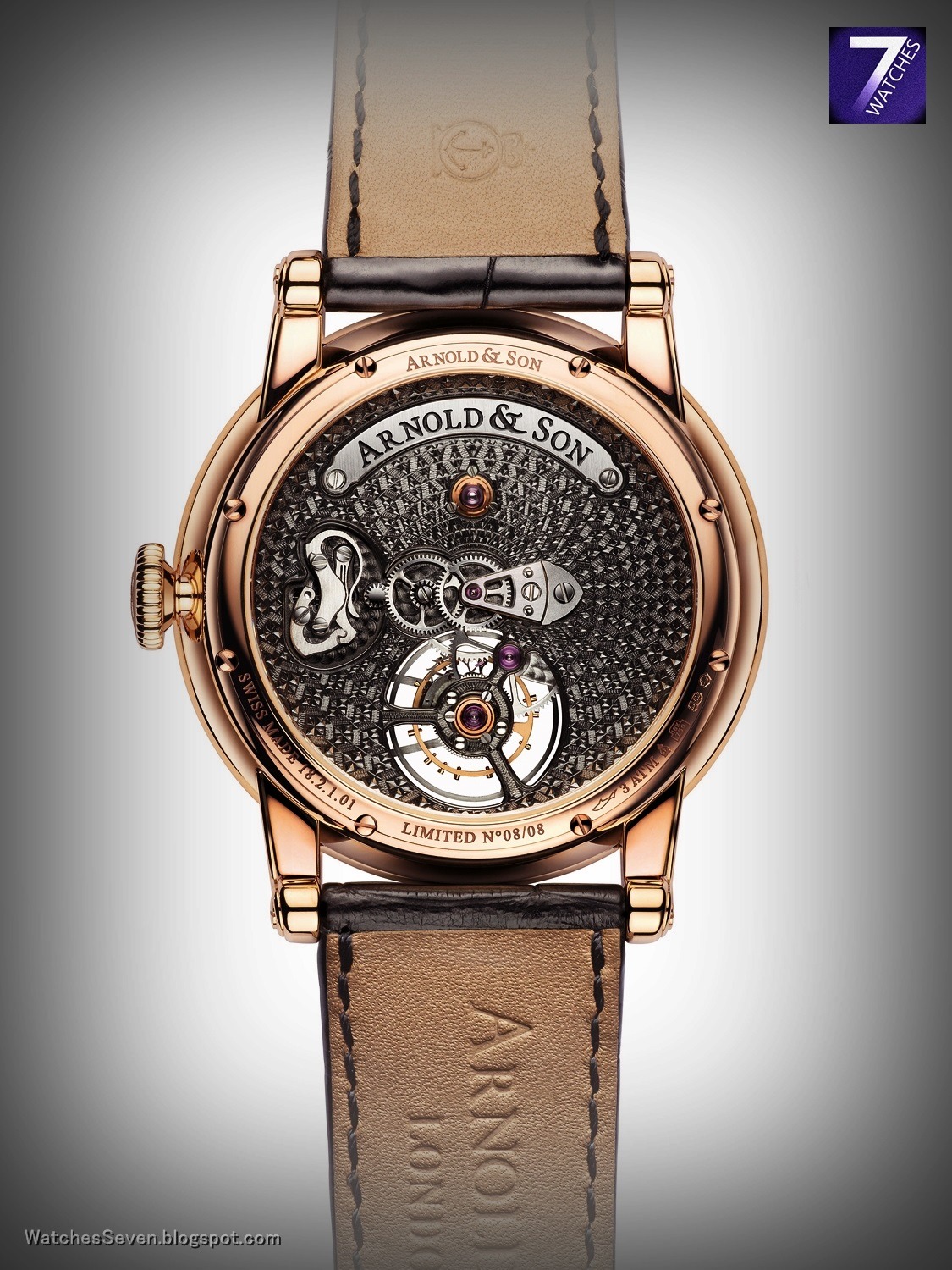

Hand-engraving is a traditional art form that involves the use of hardened steel tools called burins in combination with other special tools. These create cuts, lines and texturing that build up entire images or, as in the case of the TE8 Métiers d'Art I, a beautiful hand-engraved pattern on the barrel bridge and on the back of the main plate, bringing a breathtaking richness of detail to an already exceptional tourbillion timepiece.

Click on the mouse wheel to see the large size ...  BIG FOTO





































.

It goes without saying that every finishing touch on this striking piece has been done by hand by Arnold & Son's master watchmakers, thus fulfilling the highest standards of Haute Horlogerie finish and bringing more brilliance and depth to each element of the movement.
 Click on the mouse wheel to see the large size ...  BIG FOTO

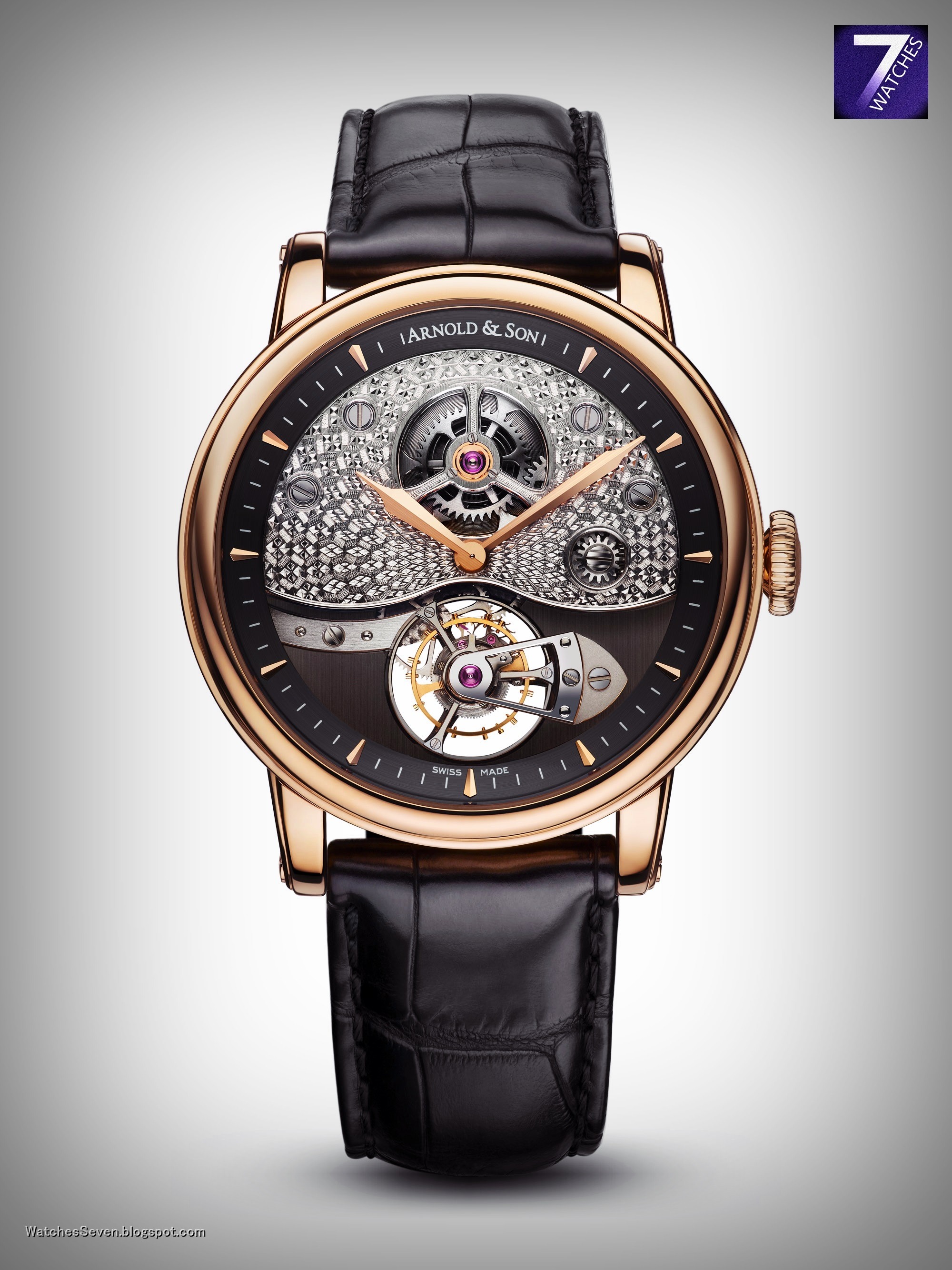

This unique timepiece measures 44 mm in diameter in its classically elegant 18-carat rose gold case.  It will be produced in a limited edition of only 8 timepieces, with each case individually hand-numbered by our master engraver.

Click on the mouse wheel to see the large size ...  BIG FOTO


























---------------------------------------------------------
Technical Characteristics

Ref. 1SJAP.B04A.C113A

Calibre:
A&S8000
Exclusive Arnold & Son mechanical tourbillon movement,
hand-wound, 19 jewels,
diameter 32.6 mm,
thickness 6.25 mm,
power reserve 80 h,
21’600 vibrations/h
Movement decoration:
hand-engraved nickel silver movement, rhodium treated bridges and NAC grtreated main plate with Haute Horlogerie finishing: manually chamfered bridge with polished edges, hand-engraved, fine circular graining, screwed gold chatons, mirror-polished tourbillon cage and bridge, screws with bevelled and mirror-polished heads
Dial:
black open dial
Case:
hand-numbered,
18-carat rose gold,
diameter 44 mm,
cambered sapphire with anti-reflective coating on both sides,
case back see-through sapphire,
water-resistant to 30 m
Strap:
hand-stitched black or brown alligator leather
Limited edition:
18-carat Rose Gold Case
Limited edition of 8 timepieces

------------------------------------------
