VOUTILAINEN – "Vingt 8" 37mm Edition

VOUTILAINEN – Current "Vingt 8" Platinum 37mm Edition - SIHH 2019

Click, to see the large size. ▶ FOTO

VOUTILAINEN – SIHH 2019

The Voutilainen Vingt-8 wristwatch perfectly encapsulates the philosophy of Kari Voutilainen. Its elegant and strong mechanism is housed in a stylish and robust case.

Click, to see the large size. ▶ BIG FOTO

The in-house movement of the Vingt-8 was designed, built, fabricated, finished and assembled in its entirety in Voutilainen workshops. The design and philosophy of the movement combines respect for longevity and precision with classical watchmaking tradition. The movement has a very large balance wheel manufactured in-house, allowing perfect regulation of the watch to within strict tolerances. To equip such an exceptional timepiece, a very rare and unique balance- spring system has been used. The exterior of the spring uses a typical Phillips overcoil, while the internal curve uses the little known Grossmann curve.

Click, to see the large size. ▶ BIG FOTO

The escapement makes the movement very special; this is the first watch to have two escapement wheels in such a configuration. The escapement wheels give a direct impulse to the balance through the impulse roller/jewel. This escapement is extremely efficient and requires much less energy than traditional lever escapements, offering benefits in terms of longevity and stability in day-to-day use. The balance-wheel bridge is sublimely elegant, offering an unimpeded view of the escapement and balance. It also allows the enthusiast to admire the synchronized movements of the escapement wheels.

Click, to see the large size. ▶ BIG FOTO

The watch is finished to the highest standards. The surfaces of pinions and wheels are completely flat and highly polished to within exceptionally uniform tolerances. All finishing work on the main plate and bridges is by hand to achieve the highest possible levels of surface finish. Screws and all steel parts are finished and polished by hand

Click, to see the large size. ▶ BIG FOTO

The wheels and pinions are perfectly polished, the bridges and mainplate are in German silver and hand-finished to superlative levels. All the steel parts are polished and hand-chamfered. This refined approach is also reflected on the dial of the Vingt-8. A solid silver base is guilloché-worked with a trompe l’oeil motif. Two zones appear to be magnified by an optical illusion created by a subtle variation in the guilloché pattern.

-----------------------------------------
Technical Characteristics

Categories: Current Collection

Model: "Vingt 8" 37mm


Case
- Unique case design

• Platinum
• 18K White Gold

Size ø 37 mm
Thickness 11.5 mm
Sapphire glasses front and back, anti reflection treatment on both sides
Waterproofness 30 m
Movement
Manual-winding mechanical
Design, construction, fabrication, finishing and assembly in Voutilainen workshops.
- In-house movement.
- 30mm x 5.60mm movement
- New escapement, with two escapement wheels, direct impulse.
- Main plate and bridges manufactured from German silver.
- Wheels manufactured from rose gold.
- 39 jewels
- Integrated retrograde date mecanism
- Power reserve: 65 h
- Free sprung balance wheel with rose gold timing weights
- 18.000 variations / hours
Balance diameter 13.60mm with Breguet/Grossmann balance spiral
Functions
Hours, Minutes, Seconds,
Date quantième rétrograde
Dial
Silver Guilloché dial with gold applied numerals and gold hands

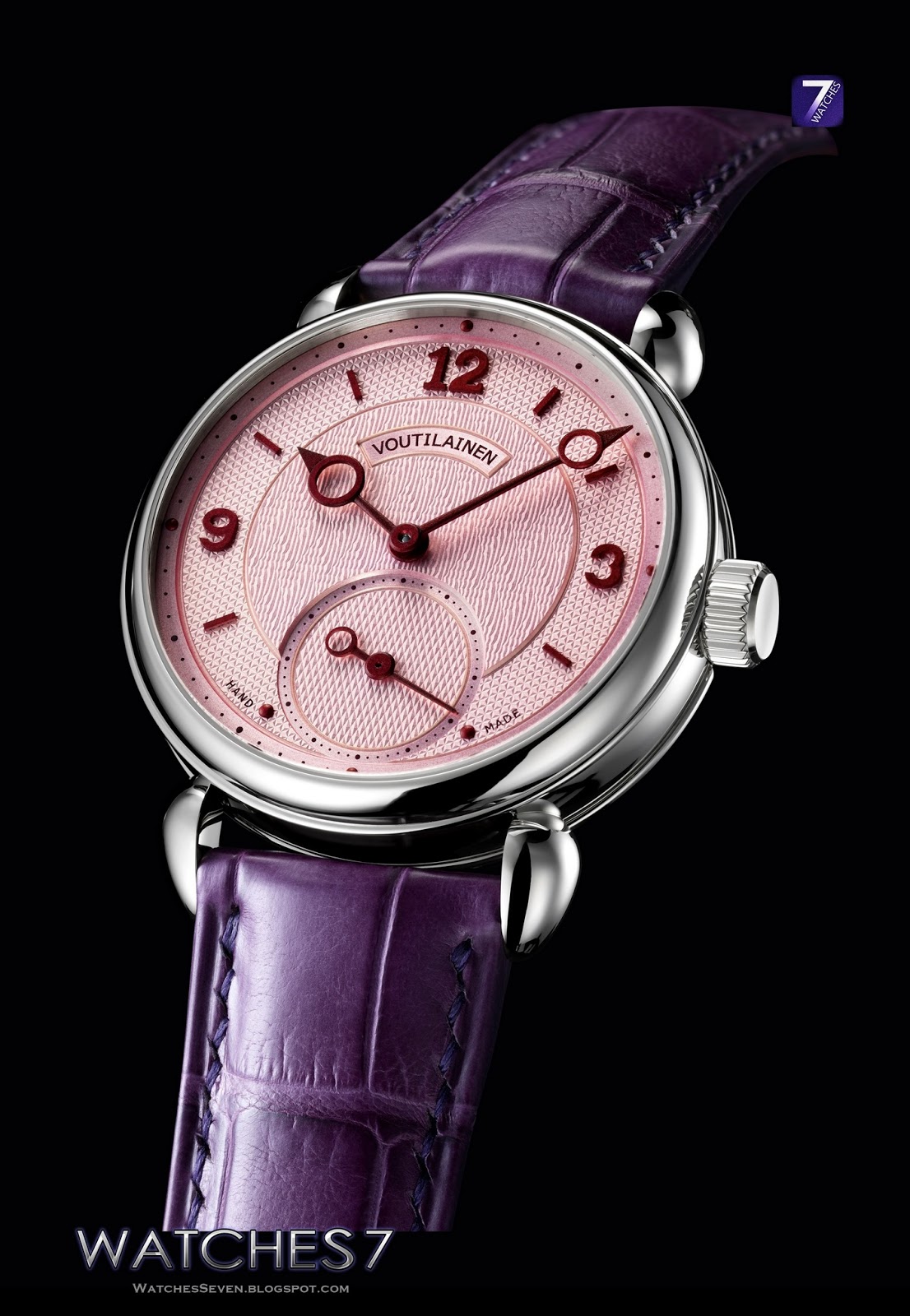

• CadranRose
• FireBrick

Strap
Hand sewn crocodile strap with 18-carat gold buckle

Additionals
All design, manufacturing, construction, fabrication, hand finishing and assembly in the Voutilainen workshop.

Year 2019

Limited - Unique piece.

---------------------------------
Kari Voutilainen
Voutilainen Horlogerie d’Art
Comblémine 2
2112 Môtiers | Switzerland
Tél +41 32 861 4832
Fax +41 32 861 4833
voutilainen@voutilainen.ch
------------------------------------------
Voutilainen.ch

RJ-Romain Jerome – ARRAW 6919 Apollo 11 Edition

RJ-Romain Jerome – ARRAW 6919 Apollo 11 Spacecraft 45 Limited Edition

RJ launches the ARRAW 6919
RJ’s first in-house movement combined with Apollo 11 DNA.

On July 20, 1969, the Apollo 11 spacecraft successfully landed the first men on the moon. Six hours after landing, Armstrong’s first-ever step onto the lunar surface became a legend worldwide.

Click, to see the large size. ▶ BIG FOTO

Just 50 years later (1969–2019), to celebrate this major milestone in mankind, RJ is launching its first watch made by materials from the very surface of the moon – the ARRAW 6919.

The Movement: RJ-2180

ARRAW 6919 is both highly horological and aesthetically rich. The SW-280 mechanical self-winding movement has been modified by RJ engineers to accommodate the patented RJ Moon Phase mechanism that shows a 3D moon rotating 360° during a complete cycle of 29.5 days.

Click, to see the large size. ▶ BIG FOTO

 The hour and minute indications at the center of the movement also indicate the location of the earth. All settings (time, moon indication, date) are done via the crown. The date set at 3 o'clock can be read with +4/–4 when the moon is between the gibbous moon and the first crescent.

Click, to see the large size. ▶ BIG FOTO

“Milestones in mankind fuel our drive to inspiration. I believe that each significant step leads to a wider world and is helping us to develop innovation in our field,” says Marco Tedeschi, CEO and Creative Director of RJ, about the ARRAW 6919.

The Case: ARRAW Space

For the first time, the emblematic RJ ARRAW 45-mm case design is inspired by the space universe. The bezel is made with super light and hard composite material combining a high-performance acrylic glass and parts from the Apollo 11 spacecraft.

Click, to see the large size. ▶ BIG FOTO

This first-ever material created by RJ is fixed to the case by a metal grid, inspired by the Apollo 11 command module. The result is so natural and harmonious that it appears as if it were meant to be. The ARRAW 6919 is available in three different materials: polished and satin-brushed grade 5 titanium, ceramic and 5N+ red gold. The watch is water-resistant up to 100 meters or 330 feet.

Strap & Clasp

The ARRAW 6919 is equipped with the interchangeable ARRAW strap system that allows the strap to be released with a simple ‘click’ by pushing simultaneously on the two lug screws. On the clasp, a lever releases the strap from the deployment buckle without having the need to use any tools. The highly-resistant polyamide strap is waterproof thanks to its black rubber inlays. The engraved patterns are reminiscent of the iconic first steps on the moon.

Click, to see the large size. ▶ BIG FOTO

“RJ has created THE ARRAW 6919 as a tribute to the Apollo 11 mission. This unique watch reflects our continuous aspiration to explore the unexplored and to show our commitment to discovery, sophistication and distinctiveness, subtly illuminated by the hands of our craftsmen. Each edition is exclusively limited to 100 copies,” comments Marco Tedeschi.

---------------------------------------------

Technical Specifications

Model: ARRAW 6919 Edition

Ref. 1S45L.CZCR.8023.PR.ASN19 - CERAMIC
Ref. 1S45L.OZOR.8023.PR.ASN19 - GOLD
Ref. 1S45L.TZTR.8023.PR.ASN19 - TITANIUM


Movement
Caliber RJ-2180
Mechanical self-winding movement with RJ 360° Moon phases mechanism
Frequency Rate  28’800 alt/h (4 Hz)
Functions
Central hours and minutes, date window at 3 o’clock and central 360° Moon phase
Jewels  41 jewels
Case
Type  ARRAW “Space”
Diameter  45mm
Bezel

• Black ceramic, circular satin-brushed.

• 18K red gold+, circular satin-brushed.

Insert in composite material combining a high-performance acrylic glass and parts from the Apollo 11 spacecraft
CASE

• Black ceramic, circular satin-brushed

Case back  Open back in black ceramic, circular satin-brushed and sapphire crystal

• 18K red gold+, circular satin-brushed

Open back in 18K red gold+, circular satin-brushed and sapphire crystal

• Grade 5 titanium, circular satin-brushed

Open back in grade 5 titanium, circular satin-brushed and sapphire crystal
Crown

• Screw-lock in black PVD grade 5 titanium with black rubber insert
• Screw-lock in 18K red gold+ with black rubber insert
• Screw-lock in grade 5 titanium with black rubber insert

Glass  Domed sapphire crystal with anti-reflective treatment on both sides.
Lugs
Black ceramic, vertical satin-brushed and polished on the side.
18K red gold+, vertical satin-brushed and polished on the side.
Titanium grade 5, vertical satin-brushed and polished on the side.
Inserts in black composite resin
Inserts in black composite resin
Bumbers  Black rubber
Water resistance  100 meters or 330 feet
Dial & Hands
Appliques

• Rhodium-plated and satin-brushed indexes with SuperLuminova C1 “blue emission”
• Red gold-plated and satin-brushed indexes with SuperLuminova C1 “blue emission”

Color  Sapphire dial open to the movement
Hands

• Rhodium-plated, satin-brushed and faceted with SuperLuminova C1 “blue emission”
• Red gold-plated, satin-brushed and faceted with SuperLuminova C1 “blue emission”

Strap & Clasp
Material Polyamide and black rubber inlay
Type Interchangeable “ARRAW” strap

• Clasp Black PVD titanium deployant buckle clasp

• 18K red gold+ top buckle clasp and PVD red gold deployant clasp

Polished and satin-brushed, side plates in black composite and joint in black rubber

• Titanium deployant buckle clasp, polished and satin-brushed,  side plates in black composite and joint in black rubber

Limited edition 100 pieces


Retail price: MSRP is $20,000.-$27,500.-*

*Suggested retail price. RJ-Romain Jerome reserves the right to change prices without prior notice


#ARRAW; #ARRAW6919; #RJ; 2019; #Apollo11; #Moon phases; #RJ360°

-----------------------------
-----------------------------
Press Release - 2019
-----------------------------
RJ Watches S.A.
1262 Eysins - Switzerland
Route de Crassier 23
Tél. +41 22 319 29 39
Fax +41 22 319 29 30
 press@rjwatches.com
========================
----------------------------------------------------------
www.facebook.com - RJ-ROMAIN JEROME
-----------------------------------------------------------------------
Rjwatches.com
