Tuesday, May 22, 2018

ORIS – Paradropper LT Staffel 7 Black Edition

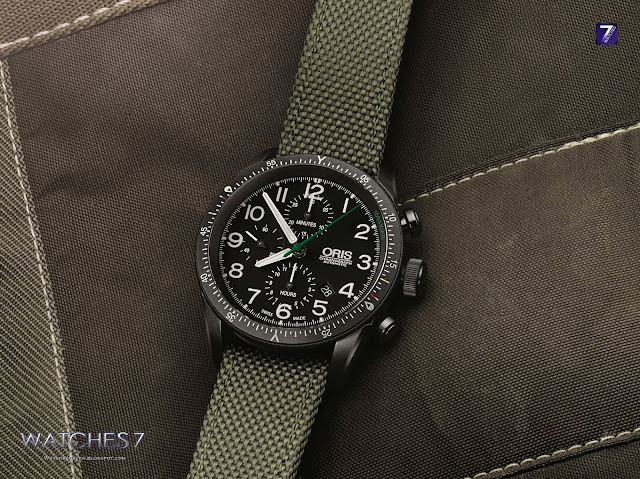

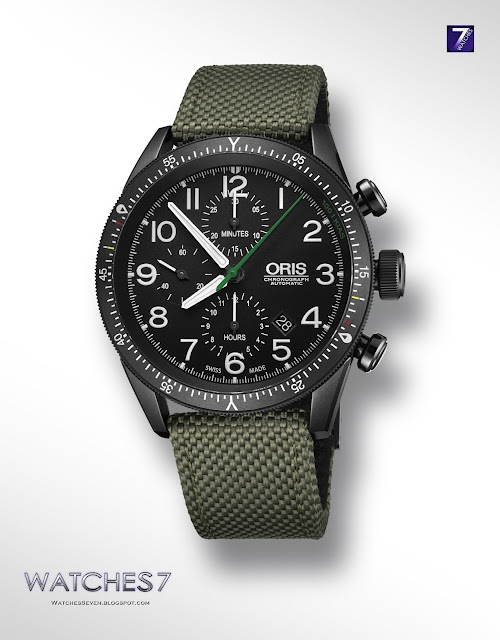

ORIS Big Crown ProPilot Paradropper LT Staffel 7 Black DLC Titanium 44mm Limited Edition


Into the drop zone
Oris introduces an inventive watch for pilots of
the Swiss Air Force’s Lufttransport Staffel 7

Click, to see the large size. BIG FOTO










































Hölstein, Switzerland – Oris has created numerous specialist watches in its long history, but few have been designed with such a specific purpose as the independent company’s latest pilot’s watch. The Oris Paradropper LT Staffel 7 Limited Edition has been created for pilots of the Swiss Air Force’s Lufttransport Staffel 7, which transports paratroopers to a drop zone. The watch marks only the second time the Swiss Air Force has worked with a Swiss watch company.


Click, to see the large size. BIG FOTO










































The stories of Oris and aviation are closely linked. Oris was founded in 1904 at the dawn of aviation and made its first pilot’s pocket watch in the early 1910s. That was followed by the company’s first pilot’s wristwatch in 1917, a watch that featured an ingenious mechanism that meant the watch could only be adjusted when a button was pressed at 2 o’clock.

Click, to see the large size. BIG FOTO



































The same spirit of invention inspired the Oris Big Crown which debuted in 1938. Its oversized crown meant gloved airmen could adjust their watches quickly and easily. Today, Oris’s pilot’s watch collection is full of innovative watches that are trusted by pilots all over the world.

Click, to see the large size. BIG FOTO

































The Paradropper LT Staffel 7 Limited Edition is the latest chapter in Oris’s pilot’s watch story. It is designed for pilots of the Swiss Air Force’s Lufttransport Staffel 7 whose task is to transport paratroopers to a designated drop zone in the Pilatus PC-6 aircraft.

Click, to see the large size. BIG FOTO









































The timings of these missions are critical. Pilots have 20 minutes from take-off to the moment when the paratroopers jump, and have to synchronise with other planes on the same missions. So they make detailed plans in which every second is critical. Timing jumps isn’t the only challenge the Lufttransport Staffel 7s pilots face. In remote territories where there are no recognised landing areas the pilots need to find makeshift airfields of at least 250 metres in length to land and take off safely.

Click, to see the large size. BIG FOTO



































The Oris Paradropper LT Staffel 7 Limited Edition meets these two challenges.

Timing for paradropping missions
  • At take-off the pilot adjusts the bi-directional rotating black ceramic bezel so that the ‘Y’ position on its timer scale is aligned with the minute hand. The pilot now has 20 minutes to reach the drop area
  • When the minute hand aligns with the yellow marker at 17 minutes the pilot informs the paratroopers to prepare to jump
  • A red marker at 19 minutes indicates to the pilot that he can give clearance to open the aircraft door
  • At 20 minutes a parachute icon indicates that it is time for the paratroopers to jump
Measuring landing areas
  • The watch has a chronograph function with a green central seconds hand. As a pilot approaches a potential landing area, he starts the chronograph
  • The pilot flies over the airfield at exactly 100 knots, once in both directions
  • If the time it takes to cover the airfield at that speed is measured at 10 seconds or more, the pilot knows the airfield is at least 250 metres long and that it is therefore safe to land
  • The 10-second mark is indicated by a green marker and the markings 100 KIAS (Knots – Indicated Air Speed)

The Paradropper LT Staffel 7 Limited Edition has a number of other useful features. Its lightweight titanium case has a stealthy, hard-wearing matt black DLC (diamond-like carbon) finish that offsets cockpit glare; its high-contrast black dial has large Arabic numerals printed in Super-LumiNova® and hands also filled with Super-LumiNova® for maximum legibility; and its rugged olive textile strap is equipped with Oris’s patented clasp, inspired by passenger airline safety buckles.

Click, to see the large size. BIG FOTO

































TheParadropper LT Staffel 7 Limited Edition will be worn by Lufttransport Staffel 7 pilots and is limited to 250 pieces. In keeping with Oris’s values, it is a practical, high-functioning watch made according to the principles of ‘form follows function’. In short, it is a watch that makes sense.

Click, to see the large size. BIG FOTO































------------------
Product Features

Model: Paradropper LT Staffel 7 Black Edition

Ref. No. 01 774 7661 7734 TS, Ø 44.00 mm
Limited to 250 pieces

Movement
Automatic mechanical movement
Oris Cal. 774, (based on Sellita SW 500)
Chronograph function and date 6 o’clock
Dameter: 30.00 mm  - 13 ¼ ’’’
Height: 7.90 mm
Frequency: 28’800 A/h (4 Hz)
Running time: 48 heures
Number of jewels: 25
Angle lift of balance: 50°
Function, date between 4 and 5 o’clock
Case
Multi-piece titanium case, screw-in stainless steel crown and pushers, all with black DLC coating. Water-resistant to 10 bar/100 m
⦁Bi-directional rotating black ceramic bezel with rubber coated outside edge for better grip, and with special timer scale adapted to the operations schedule of the Swiss Air Force’s LT Staffel 7
⦁Sapphire crystal domed on both sides with anti-reflective coating inside
⦁Black DLC-coated titanium case back engraved with the LT Staffel 7 logo and limited edition number
Dial
⦁Two-piece matt black dial with applied Arabic numerals printed with Super-LumiNova®.
Dial ring with landing field measuring scale directly assembled to the case
⦁Black/White hour and minute hands filled with Super-LumiNova®. Green central stop seconds hand, black/white counter and small seconds hands
Strap
Olive textile strap with Oris-patented stainless steel buckle black DLC coated for stageless length adjustment

Special presentation box

Price Swiss retail price CHF 3,850

----------------------------------------------
Press release - 2018
============================
