VACHERON CONSTANTIN – Les Cabinotiers Minute Repeater Tourbillon Split-Seconds Monopusher Chronograph Edition


VACHERON CONSTANTIN Les Cabinotiers Minute Repeater Tourbillon Split-Seconds Monopusher Chronograph Edition - Unique Piece

Click, to see the large size. BIG FOTO
  • A single-piece watch striking perfect balance between horological excellence and stylistic virtuosity.
  • A new manual-winding tourbillon-regulated Manufacture Calibre 2757 which drives two of the most complex horological complications: a minute repeater equipped with a centripetal flying strike regulator and a split-seconds monopusher chronograph.
  • Perfect legibility of the three-counter dial with off-centre hours and minutes, 30-minute chronograph counter, small seconds and central split-seconds chronograph hands.

Click, to see the large size. BIG FOTO

Beating to the rhythm of the new manual-winding in-house Calibre 2757, this unique Les Cabinotiers Minute Repeater Tourbillon Split-Seconds Monopusher Chronograph is in keeping with the grand tradition of Vacheron Constantin's complicated watches. True to its imaginative approach to High Watchmaking, the Manufacture has combined a minute repeater and a split-seconds monopusher chronograph within a single tourbillon-regulated timepiece. This rare and complex combination has thus far been seen mainly in the world of pocket watches, essentially made to order as single-piece editions. Above and beyond its technical complexity, this model has been the object of very special attention in terms of aesthetics and dial legibility.

Combining a minute repeater and a split-seconds chronograph driven by a tourbillon movement within the same complication watch is a challenge taken up by the Maison’s master watchmakers in this Les Cabinotiers single-piece edition.

Click, to see the large size. BIG FOTO


The construction of this calibre, which consists of integrating an additional split-seconds chronograph mechanism into a basic minute repeater movement, represents a technical feat. The combination of these functions with a tourbillon has rarely been seen in the world of pocket watches, is almost non-existent in the world of wristwatches, and represents a first for Vacheron Constantin in a wristwatch. This timepiece is also distinguished by a concern for the purity of the dial and the legibility of its chronograph functions. The tourbillon is visible only through the case back, while the off-centre display of the time and chronograph indications highlights the two central chronograph hands. The presence of a minute repeater is revealed by the slide-piece positioned on the left-hand side of the watch. This aesthetic sensibility, expressed through meticulous attention to detail and decoration, composes a veritable anatomy of beauty – the 2022 theme highlighted by the Maison.

Two centuries of expertise

As early as 1819, Vacheron Constantin produced a pocket watch with independent deadbeat seconds and quarter repeater, at the time one of the first of its kind, which is now kept in the private collection of the Maison.

Click, to see the large size. BIG FOTO

The deadbeat seconds mechanism, which allows the central second hand to advance in one-second jumps, played an important role in the measurement of short times. By making this mechanism independent by means of an additional gear train, watchmakers developed what is considered the ancestor of the chronograph towards the end of the 18th century. With such a device, it is now possible to stop the seconds hand without affecting the time indications. The split-seconds chronograph – with its two coaxial hands of which the second can be stopped to calculate an intermediate (split) time before being restarted to catch up with the first – was first introduced with a single-hand system in 1831, followed by the two-hand configuration in 1838

Click, to see the large size. BIG FOTO

Vacheron Constantin quickly integrated these developments into the pocket chronographs of the time, as confirmed by an 1889 split-seconds timepiece dispatched to Buenos Aires for a horse racing enthusiast.

New Calibre 2757 in-house manual-winding movement

Vacheron Constantin's watchmakers have developed the 698-component manual-winding Calibre 2757. Such a large number of parts denotes a rare degree of horological complexity.

Click, to see the large size. BIG FOTO

Even in the world of grand complications, calibres are often of simpler design and made with far fewer components. Given this intensely technical nature, Vacheron Constantin's watchmakers have nonetheless risen to the challenge of elegance by successfully arranging the complications of this timepiece within a remarkably slender movement measuring barely 10.4 mm thick and 33.3 mm in diameter.

Click, to see the large size. BIG FOTO

Calibre 2757, operating at a rate of 18,000 vibrations per hour (2.5 Hz) and endowed with an approximately 60-hour power reserve, enables short time measurement with 1/5th of a second precision appearing on the graduated minute-track. The unusual configuration of the dark grey dial has been designed to ensure optimum visibility of the split-seconds chronograph.

Click, to see the large size. BIG FOTO

The hours and minutes are displayed on an offset subdial, leaving room for the 30-minute chronograph counter prominently placed at 2 o'clock. The layout is complemented by small seconds at 6 o'clock, indicating that the watch is in operation, thereby leaving plenty of space for the two central chronograph hands.

A high-performance chronograph

The very construction of the movement, particularly in terms of its chronographic functions, is based on the imperative of performance. In the watchmaking world, where many great inventions belong to the past, innovation often consists in optimising the operation of a calibre. This approach begins with the development of the movement and continues with the use of new materials.

Click, to see the large size. BIG FOTO

This same approach is reflected in Calibre 2757, whose additional split-seconds chronograph plate has been specially designed to ensure efficiency thanks to the in-depth arrangement of its components. This optimisation of volumes, despite the thinness of the calibre, is also accompanied by new materials. Some of the wheels in the going train have been made of titanium or electroformed in nickel-phosphorus with a toothing profile specific to Vacheron Constantin, the goal being to ensure better gear penetration so as to avoid any jerking of the seconds hand. Silicon, an ultra-light material that requires no lubrication, is also used for one of the split-seconds levers and its insulator. These savings in component weight and friction thus reduce the loss of energy amplitude from the barrel, thereby maintaining a comfortable power reserve of up to 50 hours with the chronograph activated.

Click, to see the large size. BIG FOTO

For short-time measurements, a function demanding extreme regularity in terms of precision, Vacheron Constantin watchmakers have opted for a construction with two column wheels: the first devoted to the chronograph and the other to the split-seconds mechanism. This chronograph is thus controlled by a single pusher at 2 o'clock for the basic functions (start/stop/reset) and by the one at 4 o'clock for the split-seconds (stop/reset). Pressing the latter stops the seconds hand on an intermediate time while the first hand continues running. Pressing it again enables the split-seconds hand to join the first seconds hand in counting off time. Two scales further enhance the technical nature of this timepiece. The tachymeter scale, screen-printed in white on a 1,000-metre base, enables the average speed in km/h to be calculated over the first minute of timekeeping; the telemeter scale in red is used to calculate distances of up to 20 km according to the speed of sound (340 metres/second).

A musical watch

The chronograph functions are complemented by a minute repeater, activated by the lever on the left-hand side of the case. An essential complication for musical watches, the minute repeater has been part of Vacheron Constantin's watchmaking vocabulary for more than two centuries, sounding the hours, quarters and minutes on demand. The first known mention of a Vacheron Constantin chiming watch in the production records dates back to 1806, with a gold quarter-repeater pocket watch. Since that date, chiming and repeater watches have been part of the Maison’s heritage that has continued to grow over the decades.

Click, to see the large size. BIG FOTO

Calibre 2757 is the direct heir to this tradition, benefiting from the technical developments perfected within the Manufacture. These include an ingenious centripetal flying strike regulator. In a minute repeater watch, this mechanism regulates the duration of the musical sequence so that the notes can be heard distinctly and harmoniously. This system is distinguished by its two weights whose very special shape has been optimised to act as a brake by means of centripetal force acting on the governor’s rotating shaft, thereby evening out the energy released by the barrel and regulated by the tourbillon.

Click, to see the large size. BIG FOTO

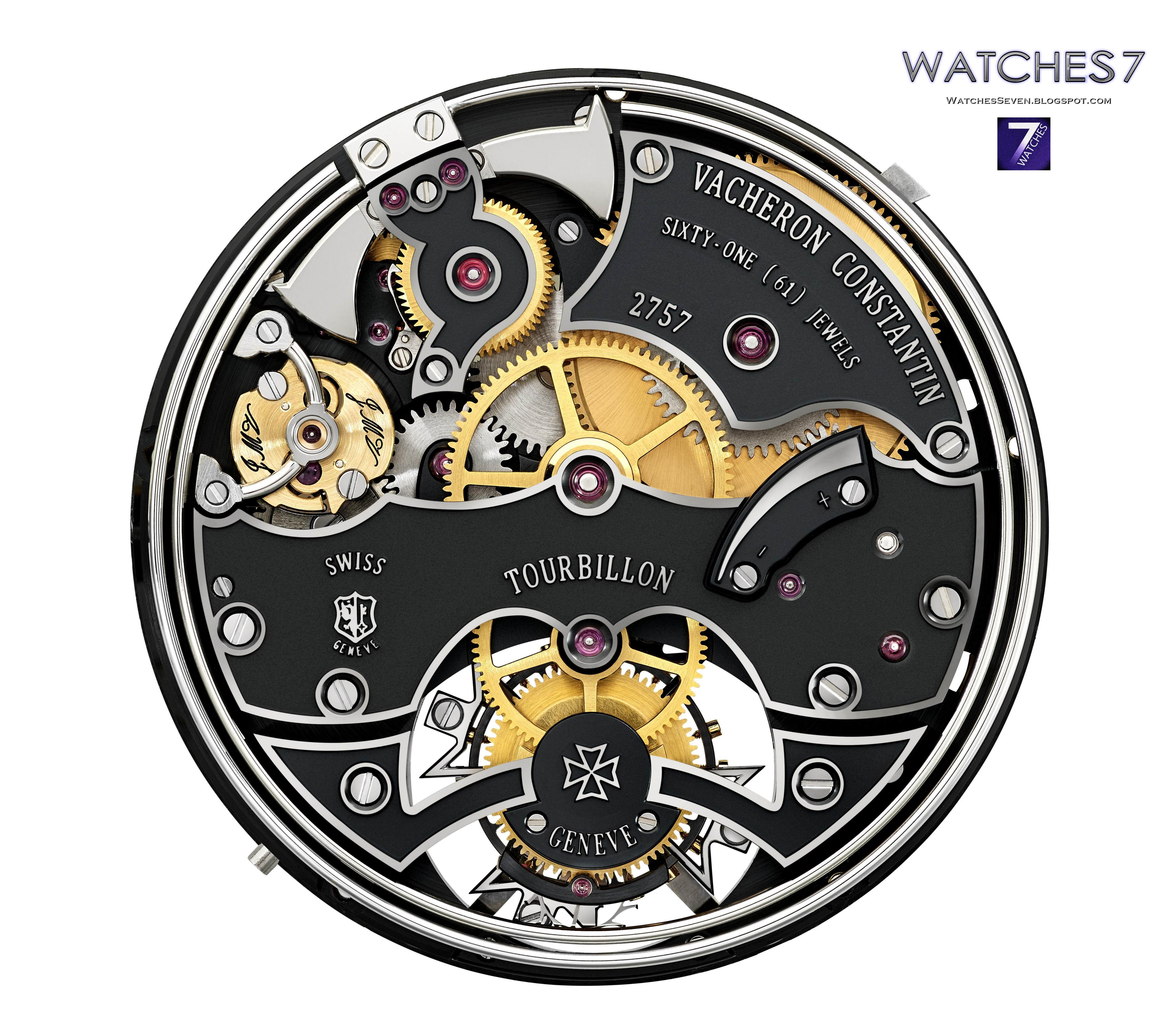

This original device is also perfectly silent. Visible exclusively through the caseback, the tourbillon is distinguished by a carriage whose shape is inspired by the Maison’s Maltese cross emblem. Held by a delicately hand-chamfered bridge, this regulator carriage performs one complete rotation per minute.

Exceptional finishing

Presented in a 45 mm-diameter 750/1000 5N pink gold case with an exhibition back and on an alligator leather strap with gold folding clasp, this watch represents a technical feat as well as epitomising extraordinary mastery in the field of watchmaking finishing. A signature feature of Vacheron Constantin watches is that each component is finely decorated with hand-made finishes before being assembled, even when destined to remain hidden.

Click, to see the large size. BIG FOTO

These surfaces that are alternately bevelled, polished, satin-finished, frosted, circular-grained or engraved and beadblasted create a play of light that brings out all the magic of Vacheron Constantin's calibres and contributes to the brand’s intrinsic anatomy of beauty. The assembly, setting into operation and casing-up of this Les Cabinotiers Minute repeater split-seconds monopusher chronograph movement thus represents only one third of the time devoted to the watch, as opposed to two thirds devoted to the calibre finishing.

Click, to see the large size. BIG FOTO

The contrast between the bridges and maintaining plate with Vacheron Constantin's signature black coating and the "metallic" moving parts already acts as a revelation of this kinetic art, which takes shape thanks to the meticulous attention lavished on details. On the dial side, the skeletonised bridges, with their hand-chamfered and straight-grained flanks feature a circular satin finish. The wheels, with their chamfered arms, are burnished and polished, a complex operation that requires special tools for the titanium wheels.

Click, to see the large size. BIG FOTO

On the caseback side of the movement, the watchmaker in charge of the timepiece – who carries out all the assembly and finishing operations right the way through to timing and casing-up in the manner of 18th century cabinotiers – has created an original decoration, in keeping with this remarkable timepiece. The blackened bridges featured a hollowed-out surface that has been sandblasted to a very fine grain by hand, topped by a mirror-polished sink. This magnificent execution, which plays on the reflections of light between the matt and the shiny, brings out the "musical" components of the movement.

Click, to see the large size. BIG FOTO

The strike governor is notably engraved with the initials J.M.C. in tribute to Jean-Marc Vacheron and features a bar whose delicate rounding off involves 12 hours of meticulous hand craftsmanship. The tourbillon bridge is engraved with Vacheron Constantin’s Maltese cross emblem. This Les Cabinotiers Minute repeater tourbillon split-seconds monopusher chronograph in 18K 5N pink gold measuring 45 mm in diameter and fitted with a black alligator leather strap achieves the perfect symbiosis between Vacheron Constantin's imaginative classicism, its perfect mastery of horological complications and its virtuosity in presenting them.

The Anatomy of Beauty®

The single-piece watch Les Cabinotiers Minute Repeater Tourbillon Split-Seconds Monopusher Chronograph features a concern for impeccable finishing and meticulous decoration of all watch components, even those that remain invisible, vividly illustrating Vacheron Constantin's theme for 2022:"The Anatomy of Beauty®". This quest for excellence is expressed through the designers' aesthetic choices and preferences as well as in the meticulous finishing work performed by the artisans. All the components of a Vacheron Constantin watch benefit from this scrupulous attention, even those that remain invisible once the movement has been assembled. A keen eye will note the fine guilloché work on a dial or the gem-set minutes track; it will make out the contours of the Maison’s Maltese cross emblem on the links of a bracelet; it will notice the small flame-blued screw serving as a seconds indicator on a tourbillon carriage and the mirror polish of a minute-repeater hammer; it will appreciate the artisans’ delicate touch when chamfering a plate or rounding off a bridge; and finally, it will admire the miniature enamel painting depicting a ship tossed around by a stormy sea streaked with lightning. At Vacheron Constantin, concern for detail delicately shapes an anatomy of beauty in which nothing is left to chance.

------------------------------------------------------------------
Sum-up

With this Les Les Cabinotiers Minute repeater tourbillon split-seconds monopusher chronograph single-piece edition, Vacheron Constantin has achieved the perfect blend of technical horology and aesthetic sophistication. This timepiece is distinguished by the rare combination of a minute repeater and a split-seconds chronograph within a tourbillon-regulated calibre.

Click, to see the large size. BIG FOTO

Despite this complexity, which is reflected in the creation of the new manual-winding Calibre 2757 with nearly 700 components, the designers at the Manufacture have created a thin movement measuring just 10.4 mm thick. This movement meets the most stringent performance criteria in terms of performance and reliability, which required a new architecture for the additional chronograph plate and the use of materials such as silicon that are lighter and have a lower coefficient of friction. The result is a high level of chronograph precision achieved throughout the 50-hour power reserve.

Click, to see the large size. BIG FOTO

The same attention has been lavished on the minute repeater mechanism, notably by incorporating a centripetal flying strike governor ensuring the musicality of the sound sequences. The care devoted to the finishing touches reflects the same philosophy, with hand-crafted High Watchmaking Finishes and magnificent contrasting effects between the colours of the components and their surface finishes. This Les Cabinotiers watch – of which the assembly and finishing are entrusted to a single watchmaker and that is distinguished by its dial with offset counters ensuring perfect legibility – perpetuates the grand Geneva watchmaking tradition upheld by Vacheron Constantin. The watch is presented with a 45 mm diameter pink gold 18K 5N case fitted with an alligator leather strap.

-------------------------------------------------------------------------
-------------------------------------------------------------------------
TECHNICAL SPECIFICATIONS

Collection: Les Cabinotiers

Model: Les Cabinotiers Minute Repeater Tourbillon Split-Seconds Monopusher Chronograph

Click, to see the large size. BIG FOTO

 Reference 9750C/000R-002C  - Unique Piece

Movement
Developed and manufactured by Vacheron Constantin
Mechanical, manual-winding
  -  Calibre 2757

Click, to see the large size. BIG FOTO

Click, to see the large size. BIG FOTO


33.30 mm diameter, 10.40 mm thick
Approximately 60 hours of power reserve
2.5Hz (18,000 vibrations/hour)
698 components
59 jewels
Poinçon de Genève
Indications

  • Off-centred/Offset hours and minutes
  • Chronograph
  • Split-seconds chronograph
  • Small seconds
  • 30-minute counter
  • Minute repeater
  • Tourbillon
Case
18K 5N pink gold
45 mm diameter, 16.4 mm thick
Dial
Dark grey dial
Hours, minutes and seconds hands: 18K 5N pink gold, polished
Chronograph and split-seconds chronograph hands: gold-toned aluminium, matt
Strap
Black Mississippiensis alligator leather, hand-stitched, saddle-finish, large square scales
Buckle 18K 5N pink gold folding clasp
Half Maltese cross-shaped

Box Les Cabinotiers box

  • Single-piece edition
  • “Les Cabinotiers”, “Pièce unique”, “AC” hallmark engraved on caseback



---------------------------------
