Louis Moinet - DERRICK Tourbillon Limited Edition

















Louis Moinet - DERRICK Tourbillon Limited Edition NEW


Louis Moinet’s DERRICK Tourbillon is a horological world first, combining the regality of an intricately-engineered tourbillon with the powerful majesty of a fully working representation of an oil derrick.

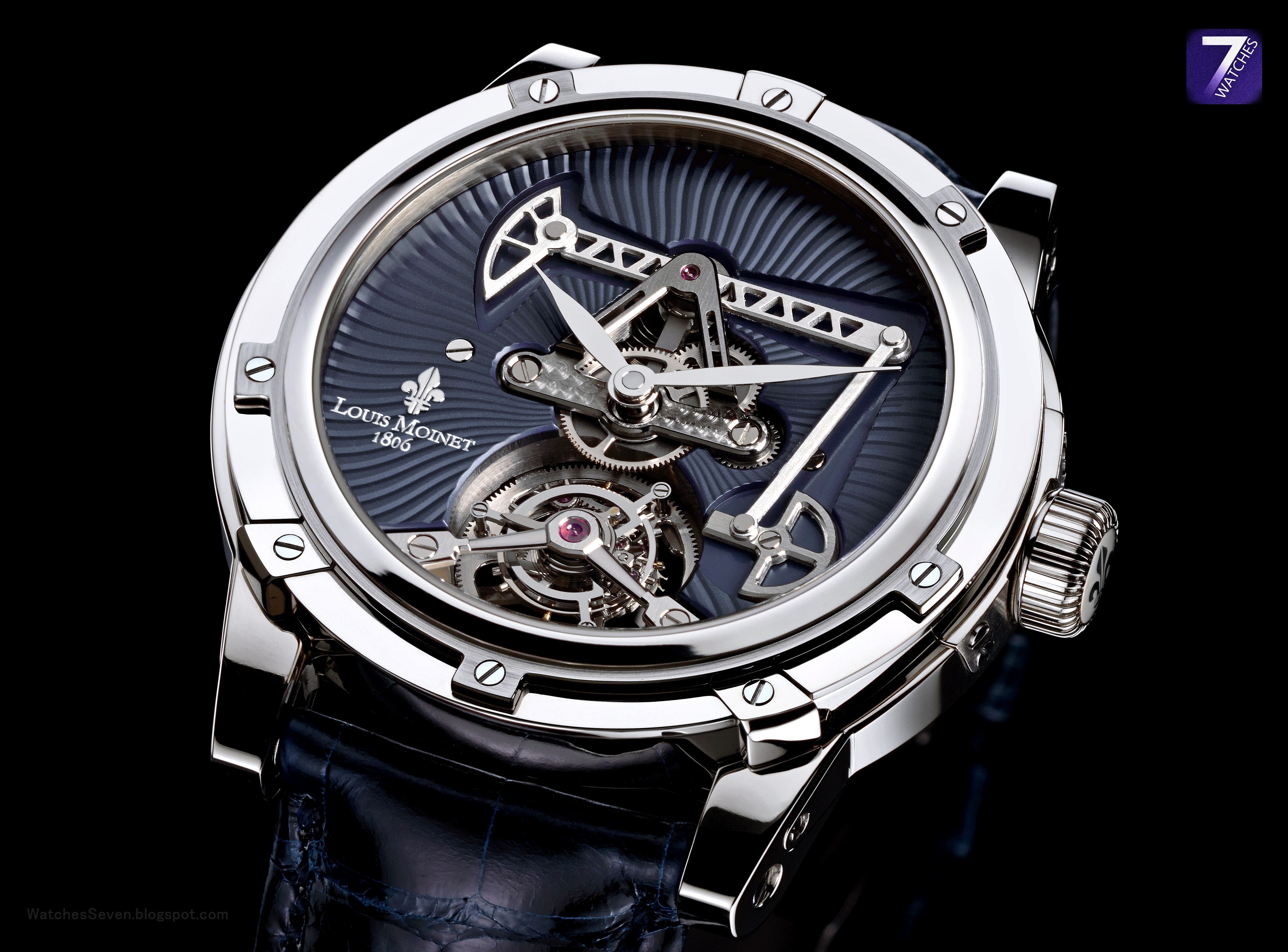

The unique derrick mechanism dominates the upper half of the petrol blue dial, depicting all the iconic parts of a traditional oil well pumpjack (commonly known as a nodding donkey), including (from left to right) the distinctive horse head, walking beam and samson posts, as well as the pitman arm, counter weight and crank.

 Click on the mouse wheel to see the large size .....      BIG FOTO






























The pumpjack, crafted in brushed aluminium, is in constant motion as it completes a pumping cycle every 15 seconds. It is visually counterbalanced by the 60-second tourbillon at 6 o’clock, which is supported by a distinctive two-armed bridge. The potent combination of the oil derrick and the tourbillon perfectly complements the silvered central hour and minute hands.

 Click on the mouse wheel to see the large size .....      BIG FOTO

























The DERRICK Tourbillon is presented in an exceptional 18K white gold case composed of 59 different components and equipped with the Louis Moinet signature crown guard. The latter invention consists of an independent stem integrated within a watertight system and held with a plate secured by four screws. It represents a major advantage in facilitating servicing, compared to traditionally soldered stems.

 Click on the mouse wheel to see the large size .....      BIG FOTO




































The view through the DERRICK Tourbillon display-back is almost as spectacular as the dial side, with the ‘octopus spring’ of the winding and setting mechanism taking centre stage. This ingenious component is effectively three springs in one – pull-out piece spring, lever spring and click spring – all radiating from the centre like the swirling legs of an octopus. The movement is engraved with Louis Moinet’s Côtes du Jura motif, echoing the decoration on the dial-side.
The DERRICK Tourbillon is available in an exclusive limited edition of 12 pieces


Downloads document PDF

---------------------------------------------------------
Technical Specifications

Model: DERRICK Tourbillon

Reference №: LM-14.70.03

Features and functions
Working representation of an oil well pumpjack in brushed aluminium
Exclusive tourbillon escapement
Petrol blue dial decorated with “Côtes du Jura” ®
Central hour and minutes
Movement
Exclusive tourbillon escapement with a representation of an oil derrick
Winding: Manual
Mechanism visible through the case-back with “octopus” spring
Oscillations: 21,600 vph
Frequency: 3 Hz
Lines: 14 ½
Power reserve: 72 hours
Tourbillon cage: One full rotation every 60 seconds
Jewels: 19
Escapement: Side lever
Decoration: “Côtes du Jura” ® engraving, blued steel screws
Case
Original design by Louis Moinet®, made up of 59 parts
Material: 18k white gold
Case diameter: 47 mm
Water-resistance: 30 metres
Caseback: Secured with 6 screws, engraved with individual number and Louis Moinet markings
Crystals    : Two anti-reflective sapphire crystals
Dial
Petrol blue, decorated with “Côtes du Jura” ®
Strap
Strap: Louisiana alligator leather, hand-sewn, width between lugs : 24 mm
Buckle: 18k white gold & black titanium folding clasp with Louis Moinet symbol
Presentation box
Extra large Louis Moinet Book, hand-written warranty

Limited Edition of 12 pieces

--------------------------------
