PATEK PHILIPPE - Réf. 5200 Gondolo 8 Days, Day & Date Indication White Gold

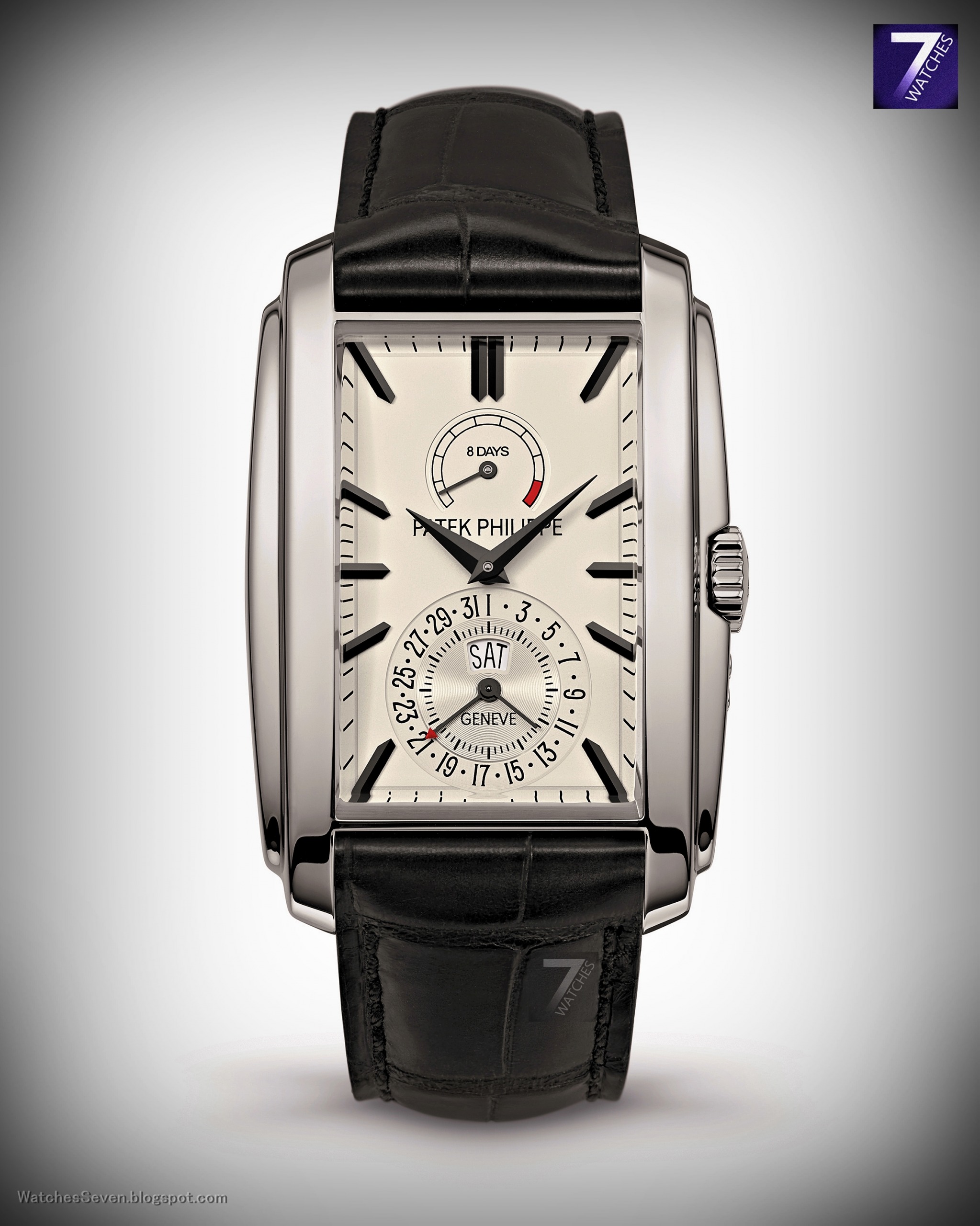

 Patek Philippe - Ref. 5200 GONDOLO 8 Days, Day & Date Indication White Gold NEW


 Press Release
BaselWorld 2013
Patek Philippe, Geneva
April 2013


Energy for more than a week

Patek Philippe's new Ref. 5200 Gondolo 8 Days, Day & Date Indication appeals to all aficionados who prefer manually wound timepieces. For this model, the Genevan workshops developed a new caliber that in many respects is reminiscent of the Ref. 5100 “10-Day”, presented 13 years ago to welcome the new millennium. Unlike the 5100, however, the new Gondolo contains innovative Silinvar® components from the “Patek Philippe Advanced Research” think tank for which the manufacture has been granted numerous patents in the past years. The result is a fetching form movement with a genuine 8-day power-reserve display. Its date by hand and large aperture for the day of the week – both instantaneously switching – and an aesthetic personality cannot fail to delight watch enthusiasts. The caliber is accommodated in an anatomically curved rectangular case that celebrates the Art Deco style. It is an impressive example of Patek Philippe’s competence in designing and building extraordinary timepiece cases.

Click on the mouse wheel to see the large size ...           BIG FOTO


























True craftsmanship

There are many men among connoisseurs and aficionados of high-end horology who deliberately
choose a manually wound timepiece. This is not just a predilection; it has some incontestable technical advantages. A watch that is wound by hand at regular intervals is very precisely adjustable because the declining torque of the gradually relaxing mainspring can be taken into account in the poising process. Conversely, in a self-winding watch, the tension of the mainspring varies with the intensity of the movements of the wrist while it is worn. Another argument in favor of manually wound timepieces is the tactile experience of turning the crown between fingertips and feeling the smooth action of the winding train. It is like a recurring ritual that strengthens the relationship between the watch and its owner. With the Ref. 5200 Gondolo 8 Days, Day & Date Indication, this procedure takes place every 8 days and requires 134 revolutions of the crown each time.

Click on the mouse wheel to see the large size ...           BIG FOTO








































A role model of energy efficiency

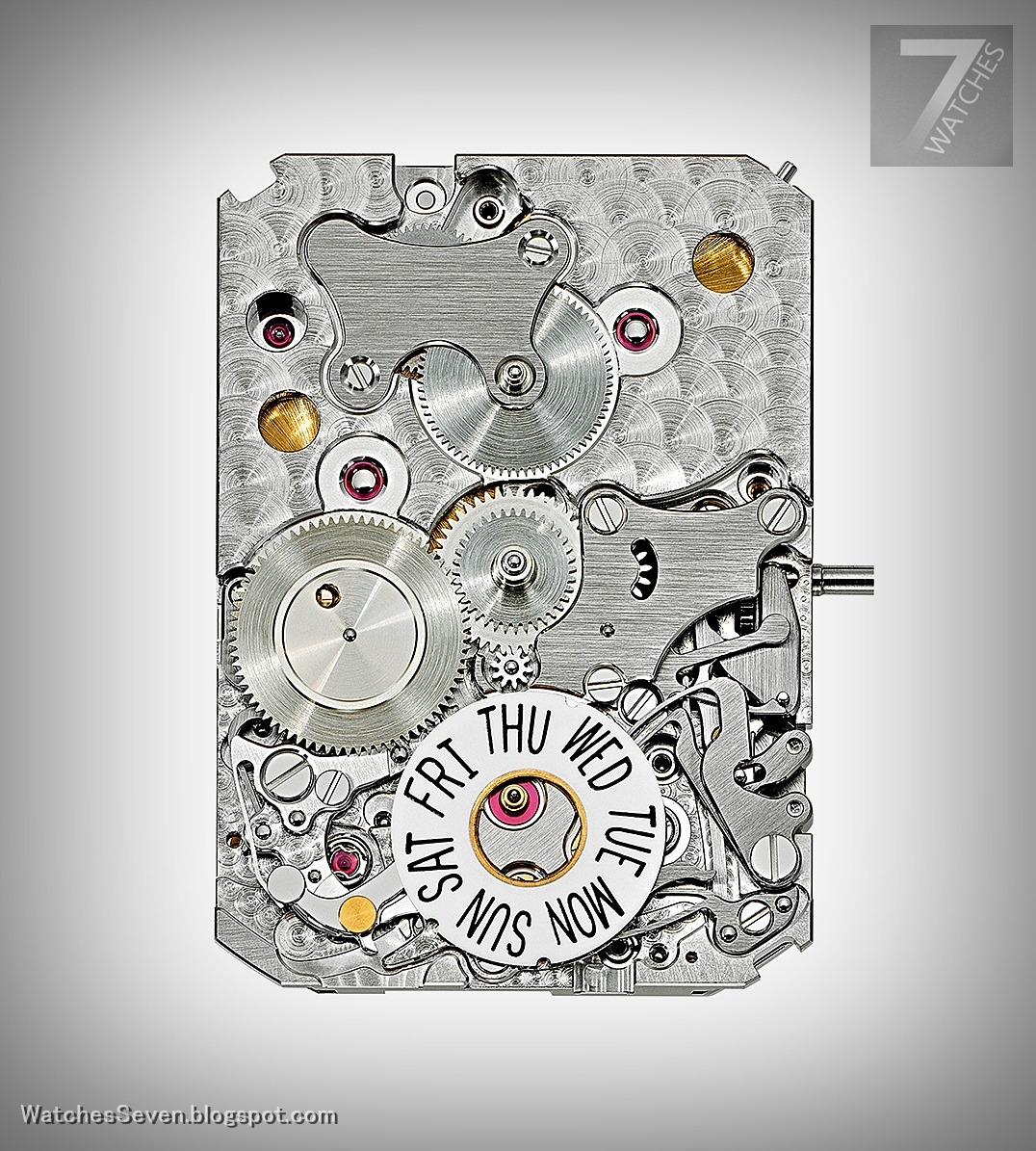

The rectangular caliber 28-20 REC 8J PS IRM C J form movement enriches the Patek Philippe collection of currently produced manually wound movements. It was developed explicitly for the Ref. 5200 Gondolo; in twin in-line barrels, it stores the power needed to guarantee that it will run non-stop for 192 hours. This doesn't mean that the watch will stand still then; instead, it has the power reserve required to safeguard the steady amplitude of the balance and its rate accuracy up to and including the eighth day. Insiders will no doubt remember the Patek Philippe “10-Day” which had its debut in the year 2000 and delivered power for two additional days. The fact that the Ref. 5200 falls short by two days is associated with the date indication and the day aperture; advancing these calendar displays every day at midnight requires a lot of energy.

Click on the mouse wheel to see the large size ...
























 This is remarkable especially because the calendar is an instantaneously switching mechanism in which the day and the date switch forward simultaneously at midnight, within three milliseconds – faster than the blink of an eye. In the process, the large disk of the prominent day-of-week display has to be advanced by one increment as well. Indeed, a power reserve of this magnitude is quite remarkable, given the eight lightning-fast calendar switching cycles. This applies all the more because when quantifying power reserve, Patek Philippe always factors in the energy needed for one further calendar switching cycle – for functional reliability reasons.

Click on the mouse wheel to see the large size ...           BIG FOTO


































To a great extent, the staying power of the new caliber 28-20 REC 8J PS IRM C J is due to the patented oscillator with a Spiromax® balance spring and a Pulsomax® escapement, for which Patek Philippe has leveraged all the benefits of the innovative silicon-based Silinvar® material. It is the manufacture’s first 4-hertz movement with these patented elements. The Pulsomax® escapement with a Silinvar lever and escape wheel requires no lubrication and yet is practically friction-free, which saves energy each time the lever contacts the escape wheel. With 5.53 million contacts in eight days, this degree of efficiency really comes to the fore in a 4-hertz movement (28,800 vph). Additionally, the extremely hard, totally antimagnetic and corrosion-resistant Silinvar® material is two-thirds lighter than steel, which further optimizes the energy balance. The efficiency of the escapement and the rate accuracy of the watch are further enhanced by precise machining to thousandths of a millimeter as well as the patented geometry of the Silinvar® lever and escape wheel developed by Patek Philippe.

 Click on the mouse wheel to see the large size ...           BIG FOTO

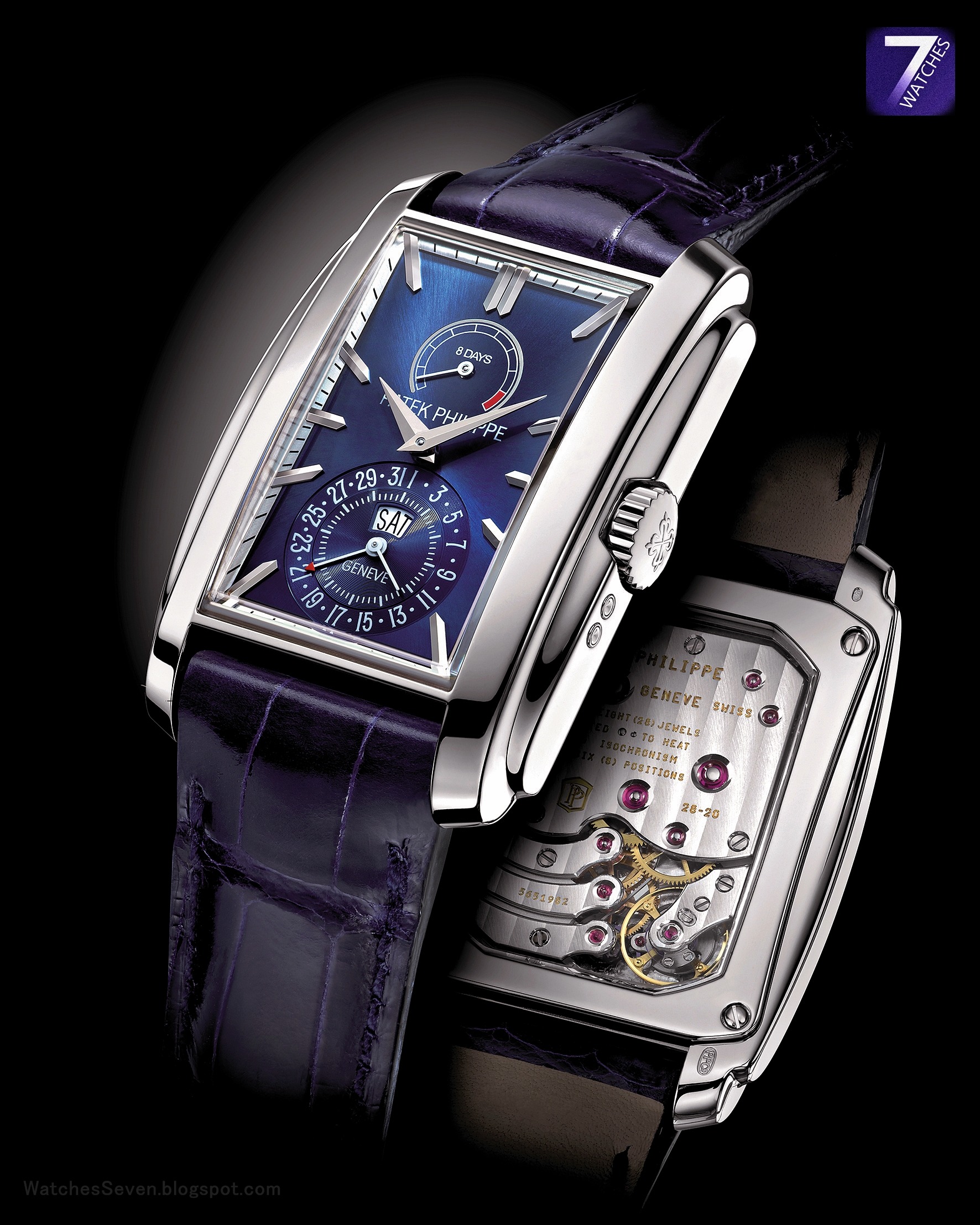

The patented Spiromax® balance spring is made of the same revolutionary material. Thanks to the precisely computed geometry of the Patek Philippe terminal curve, thinness is combined with totally symmetric expansion and contraction to optimize isochronism. The advantages of Silinvar® have a favorable impact on uniform breathing, which makes a decisive contribution to high rate accuracy. This innovative escapement can be admired through the sapphire-crystal case back; depending on the angle of the incident light, the balance spring, the lever, and the escape wheel can be recognized by their purple-to-bluish hue. The aesthetic appeal is obviously inspired by the “10-Day” caliber and apart from the large mainspring barrel plate, the caliber features a clever “trompe l’oeil” going train bridge, which at first sight seems to be an ensemble of three separate, gracefully curved bridges, as well as a generously dimensioned and thus highly rigid balance cock that securely carries the readily visible oscillator. The surfaces are decorated with Geneva striping and gold-filled engravings, the edges chamfered and polished, and the flanks longitudinally grained. This is a true gem that deserves to be showcased in its display window. Despite the addition of an elaborate instantaneous calendar mechanism with a date hand and an aperture day, the new caliber 28-20 REC 8J PS IRM C J is merely 5.05 mm high, just like the movement of the Ref. 5100 “10-Day”.

Click on the mouse wheel to see the large size ...

























Timeless Art Deco beauty

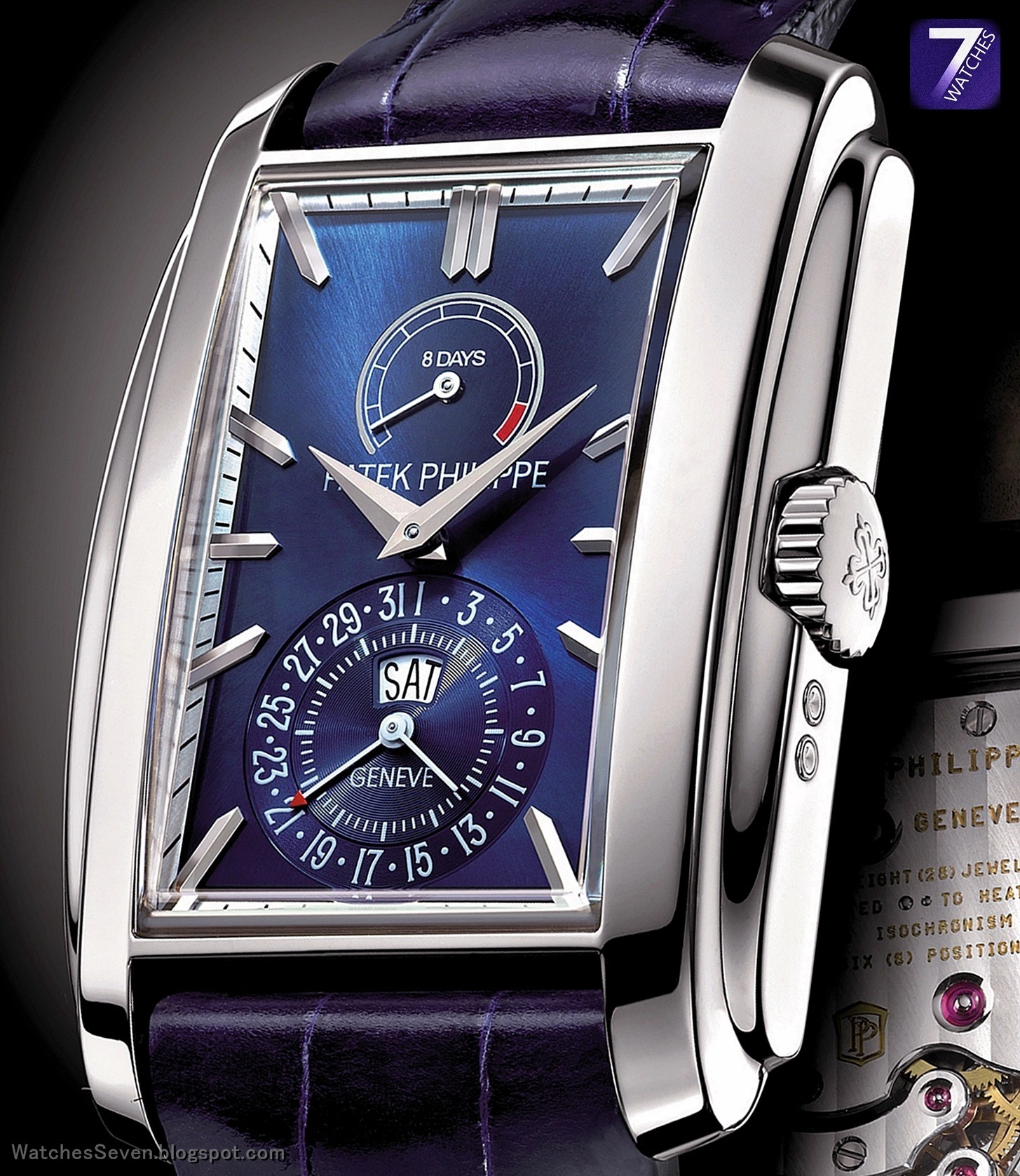

The innovative rectangular long-distance runner is housed in an anatomically curved and elongated white-gold case with two-tiered flanks reminiscent of the most memorable Art Deco creations. In the Geneva workshops, it is crafted from solid gold bars using the cold-forming technology, shaped to perfection in numerous consecutive steps, and then gradually polished to a mirror finish by experienced specialists who invest countless hours to achieve the perfect result. The screwed case back incorporates an anatomically contoured sapphire-crystal insert, and the crystal that protects the dial is ground to a convex shape that follows the silhouette of the case without distorting the view of the elegant and well-organized face. The dial is available in blue sunburst or silvery white. Emphasizing the ninth day in red to remind the owner to wind the mainspring, the 8-day power reserve indicator occupies the upper half of the dial. Its lower half is reserved for the calendar functions, featuring a 31- day scale for the date and an aperture for the day of the week. The seconds subdial is integrated in the date circle. Securely riveted to the face, the faceted white-gold hour markers are mirror-polished for the blue dial and blackened for the silvery opaline dial. The faceted Dauphine-style hour and minute hands in white gold are either mirror-polished or matt-blackened to match the dial color. The date hand with the red tip and the hands for the subsidiary seconds and power-reserve indicator are finished in white lacquer to contrast against the blue dial and blackened to match the silvery white dial. Discrete elegance and excellent legibility are two key prerequisites for the timelessness and lasting value of this watch, which is designed to serve its owners across several generations. Unquestionably, it is a paragon of aesthetics and functionality.

The new Patek Philippe Ref. 5200 Gondolo 8 Days, Day & Date Indication is worn on a hand-stitched alligator strap with large square scales, which is secured with an 18K white-gold prong buckle. The strap is shiny blue to match the blue dial and matt black for the model with the silvery white dial.
In 1964, with their number-one hit “Eight days a week”, the Beatles rhapsodized over the power of eight days. Now, with the Gondolo Ref. 5200 8 Days, Day & Date Indication, Patek Philippe demonstrates how seductive the energy for eight days can be.


 ---------------------------------------------------
Technical Specifications

Movement
Mechanical hand-wound rectangular 28-20 REC 8J PS IRM C J calibre
235 parts, 28 jewels, 28,800 vib/h, 8-day power reserve
Functions
Hours, minutes, seconds, instant day,
instant date and power-reserve indication
Case
18k white gold, cambered, 46.9 x 35.20 mm
Convex sapphire crystal and concave screw-down sapphire caseback
Water-resistant to 30 m (3 ATM/100 ft)
Dial
Sunburst blue or silver-toned white Day window,
off-centred seconds and pointer-type date display at 6 o’clock
Power-reserve indication at 12 o’clock
Bracelet/strap
Shiny blue or black matt alligator with large scales and 18k white gold buckle





www.swisstime.ch







www.facebook.com - Patek-Philippe
--------------------------------------------------------
www.Patek.com
------------------------------------------------

EMILE CHOURIET - Moonphase


EMILE CHOURIET Moonphase NEW


Click on the mouse wheel to see the large size ...           BIG FOTO

Emile Chouriet only has eyes for the moon, whose movements dominate the dial of its Moonphase watch. The Geneva brand has called on its talented watchmakers to develop an original calibre that has the moon rotate all the way round the dial.
Click on the mouse wheel to see the large size ...           BIG FOTO
The decoration of the dial benefits from similar attention in the exceptional and innovative rendering of its materials. Blue mother-of-pearl creates a lifelike, shimmering moon, while metallic stars are dotted across its night "sky" to further illuminate this most realistic of backgrounds.
 ---------------------------------------------------
Technical Specifications
Movement
Mechanical automatic, ETA 2892 calibre with additional module,
exclusive to Emile Chouriet
Functions
Hours, minutes, seconds and moon phases
Case
Stainless steel, 40 mm Sapphire crystal front and back
Water-resistant to 30 m (3 ATM/100 ft)
Dial
Metallic blue with twinkling stars and mother-of-pearl moon rotating around the centre
Silver-toned hands with cut-out detail Four Roman numerals
Bracelet/strap
Black leather with steel folding clasp

------------------------------------------------------------
EMILE CHOURIET
Ch. de l'Epinglier 5
CH 1217 Meyrin

Phone : (++41) 022 989 14 20
Fax : (++41) 022 782 01 13
info@emile-chouriet.ch
----------------------------------------------
www.Emile-Chouriet.ch
