Oris - Aquis Depth Gauge

















 Click on the mouse wheel to see the large size ...


























ORIS - Aquis Depth Gauge NEW

 Click on the mouse wheel to see the large size ...


































Diving Reaches New Depth.....


 Click on the mouse wheel to see the large size ...
















 Click on the mouse wheel to see the large size ...















The first watch launch of our 2013 collection.

Renowned for producing specialist diving watches, Oris is proud to introduce the Oris Aquis Depth Gauge - first divers watch which measures depth by allowing water to enter the timepiece.


 Click on the mouse wheel to see the large size ...


























A non inertia, responsive, incredibly accurate and actual depth gauge indication – particularly useful in decompression in the lesser depths and be suitable for both the professional and recreation diver alike.


 Click on the mouse wheel to see the large size ...

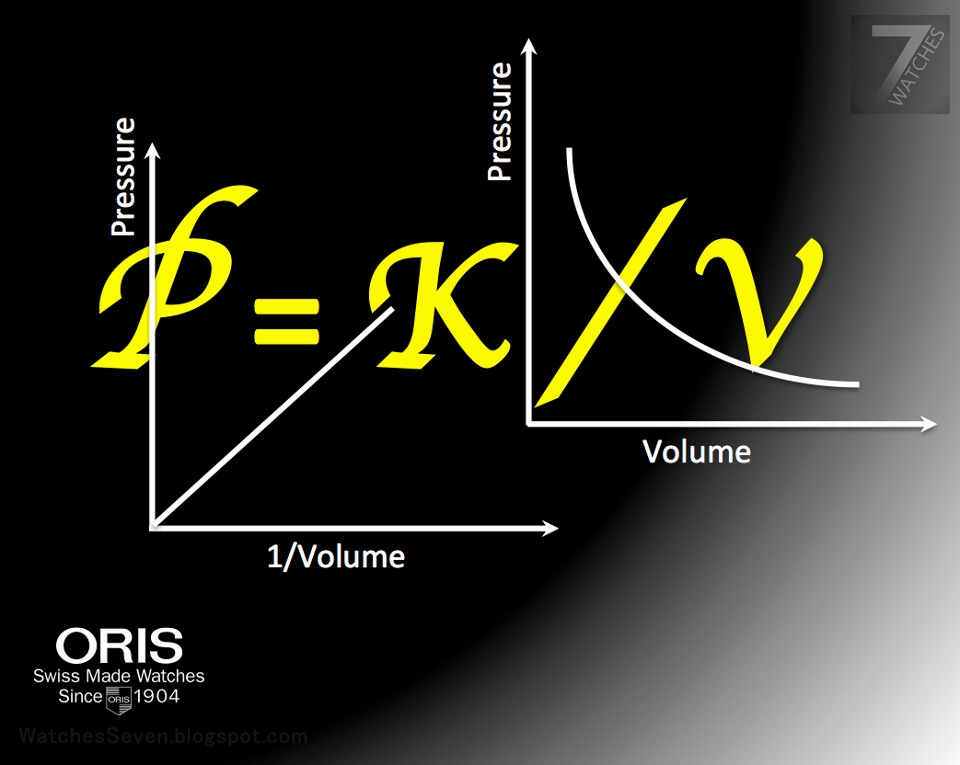

Oris' engineers have applied the Boyle Mariotte Law to the patented Oris Aquis Depth Gauge. This states that if the volume of a gas is decreased, the pressure increases proportionally.


  Click on the mouse wheel to see the large size ...


















  Click on the mouse wheel to see the large size ...

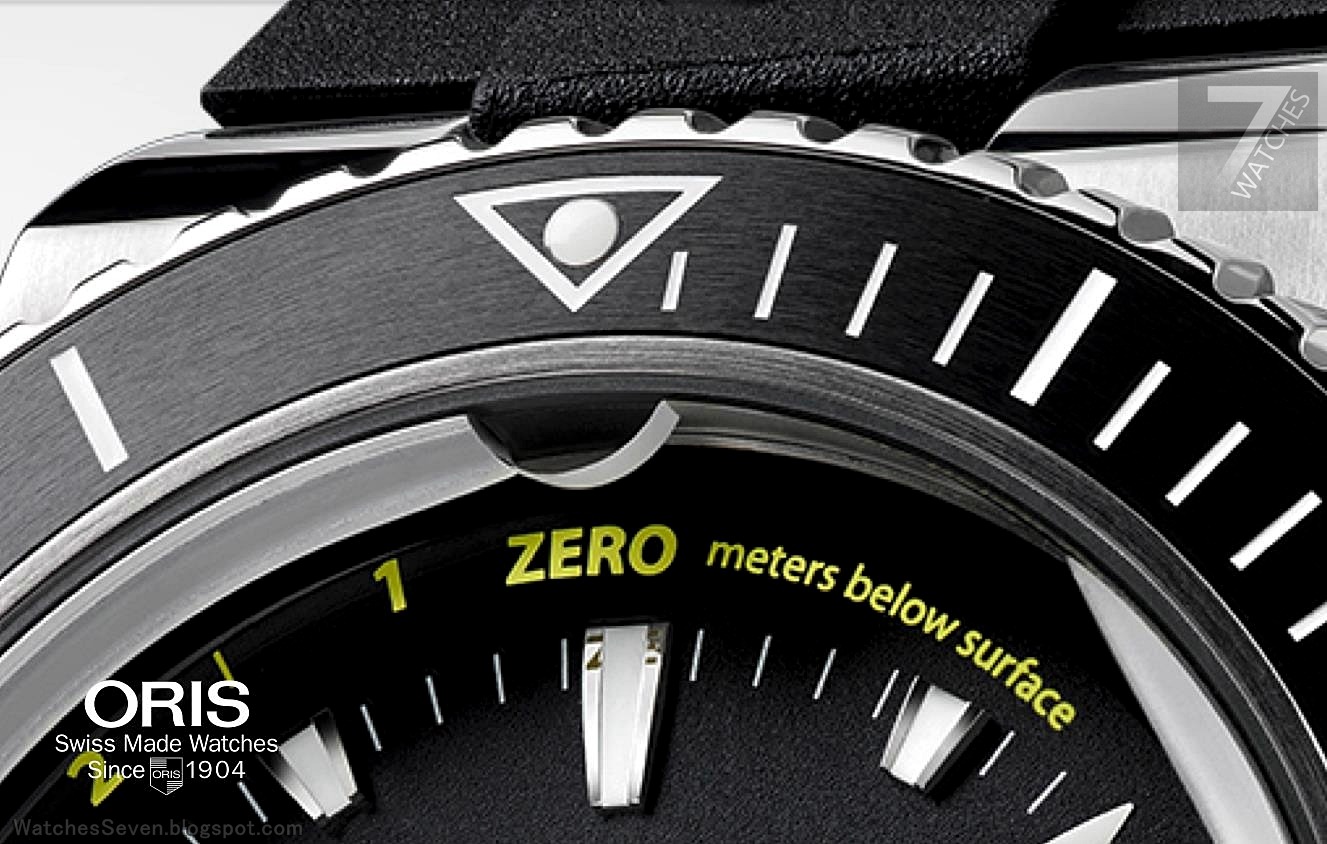

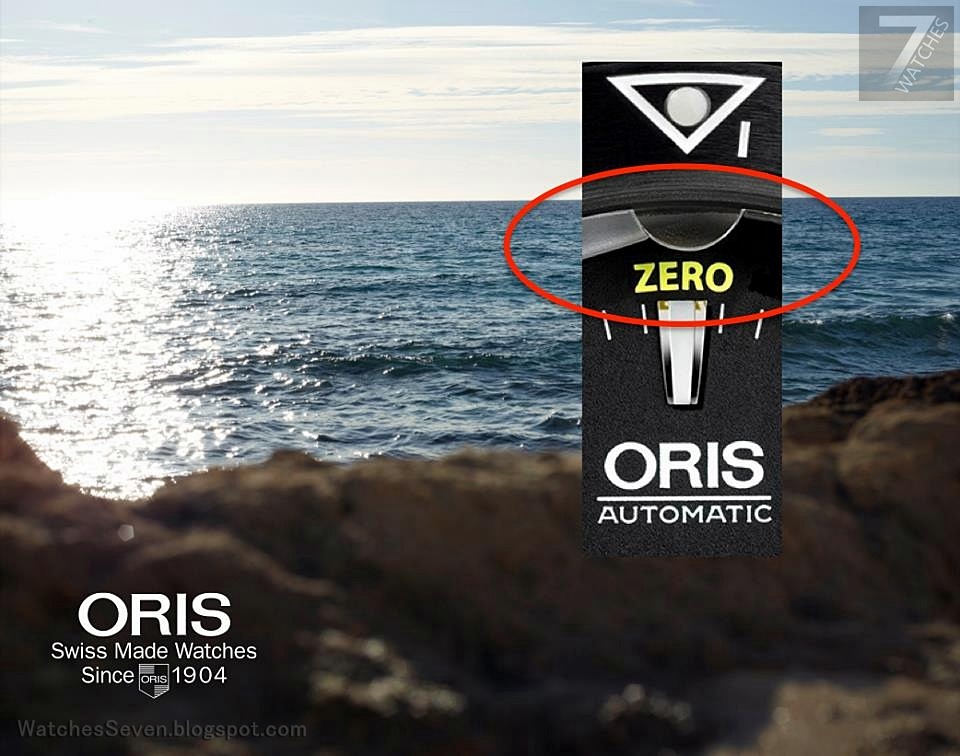

On descent, the air inside the channel milled into the side of the crystal, is compressed with the increase in the atmospheric pressure. The hole in the crystal at 12 o'clock allows water into the channel, which corrseponds with a scale.


 Click on the mouse wheel to see the large size ...

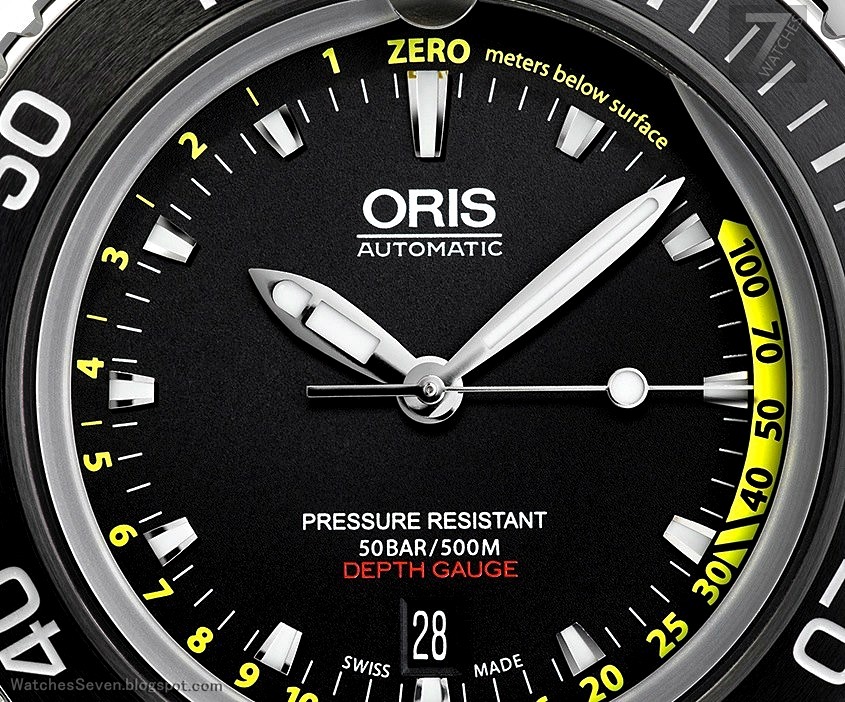

The edge, in light grey and dark grey, differentiate water and compressed air on the scale around the outside of the dail, indicating the depth while decending or ascending.

 Click on the mouse wheel to see the large size ...

































  Click on the mouse wheel to see the large size ..



























 Click on the mouse wheel to see the large size ...







































 --------------------------------------------
Specifications:

Ref. No. 773 7675 4154 Set,


Movement is the Swiss automatic Oris caliber 733 (base Sellita SW200)
with 26 jewels, 28,800 vph and a power reserve of 38 hours.
With date window at 6 o'clock
Case Ø 46.00mm,
Stainless steel case, water-resistant to 50 bar/500 meters
Unidirectional revolving top ring with black ceramic inlay and minute scale
Sapphire crystal, domed and anti-reflection coated on both sides,

features a milled channel for depth gauging and a yellow meter scale
Rubber strap and metal bracelet as alternative
Set includes waterproof case, separate metal bracelet and tools


Swiss Retail Price CHF 3,500.00/ Set


------------------------------
