Grand Seiko – Evolution 9 Spring Drive 5 Days Titanium - Caliber 9RA5



SEIKO – Grand Seiko Evolution 9 Spring Drive 5 Days Titanium - Caliber 9RA5 - 2022

Click, to see the large size. ▶ BIG FOTO

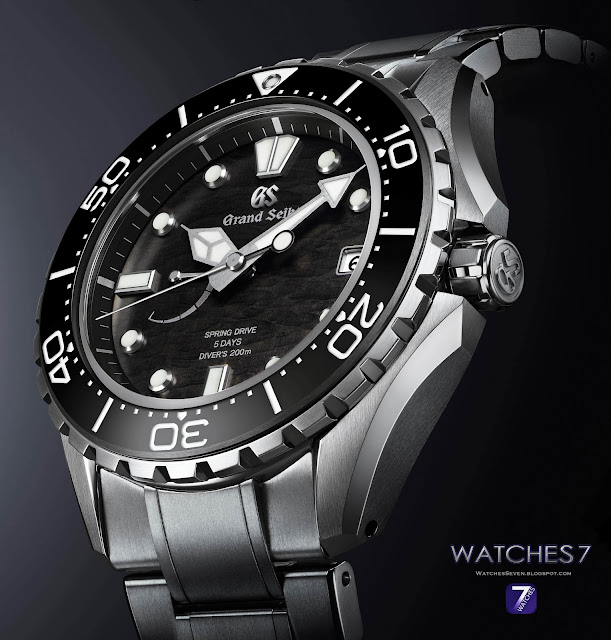

This 200m Grand Seiko diver’s watch from the Evolution 9 Collection has a deep black, richly textured dial inspired by the dynamic and sometimes violent tides caused by the Black Stream, or Kuroshio current that surrounds the Japanese archipelago.

Click, to see the large size. ▶ BIG FOTO

The watch exhibits the Evolution 9 Style, a new grammar of design that enhances the Grand Seiko Style established in 1967 and takes the beauty, legibility and comfort of Grand Seiko to a new level. Its Zaratsu polished, distortion-free mirror finish and delicate hairline finish alternate to give the case a quiet and harmonious glow.

Click, to see the large size. ▶ BIG FOTO

A new font has been created for the numerals on the bezel especially for the collection. The lugs are wider and the bracelets are more robust and, like the cases, have a low center of gravity to ensure that the watches sit comfortably and securely on the wrist.

Click, to see the large size. ▶ BIG FOTO

The watch’s case and bracelet are made of high-intensity titanium, which is about 30% lighter than stainless steel and brighter in color. The inner section of the rotating bezel is in ceramic to protect the watch from being scratched.

Click, to see the large size. ▶ BIG FOTO

The hands and indexes are coated with sufficient Lumibrite to further enhance the legibility of the time at night. The crown guard is carefully designed to avoid being caught on the sleeve in both sport activities and everyday use.

Click, to see the large size. ▶ BIG FOTO

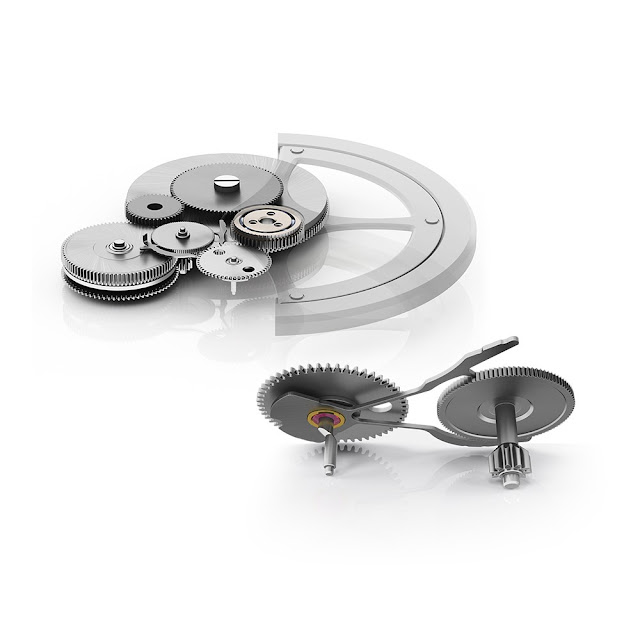

The watch is powered by the latest Spring Drive movement, Caliber 9RA5, which offers an accuracy rate of ±10 seconds per month and a 5 day power reserve. Caliber 9RA5 has enhanced rigidity and shock resistance thanks to the new layout of the gear train towards the center of the movement and a central bridge that holds them together.

Click, to see the large size. ▶ BIG FOTO

This One-piece Center Bridge achieves a shock resistance that meets the ISO standard for diver’s watches. The movement incorporates two barrels which deliver a power reserve of up to 120 hours.



Click, to see the large size. ▶ BIG FOTO

They are different sizes so as to deliver the torque required for the five day power reserve while optimizing the use of the limited space within the movement.

=============------

TECHNICAL SPECIFICATIONS

Model:   Grand Seiko Evolution 9 Spring Drive 5 Days Titanium - Caliber 9RA5

Click, to see the large size. ▶ BIG FOTO

 Ref. SLGA015

Collection    Evolution 9



Movement
Winding mechanism Automatic with manual winding

Caliber no.:     9RA5 Instructions
Movement Type:     Spring Drive
Accuracy:     ±0.5 second per day (±10 seconds per month)
Functions
Hours, Minutes, Seconds, Date, Power reserve indicator

Magnetic resistance:     4,800 A/m

Power reserve     Approximately 120 hours (5 days)
Number of jewels     38 jewels
Weight:     150 g
Other details / Features:
    Unidirectional rotating bezel
    Screw-down crown
    Three-fold clasp with secure lock
    Power reserve indicator

Exterior

Case:     High-intensity Titanium
Textured Dial

Case back:     Screw case back
Glass Material:     Sapphire crystal
Glass Coating:     Anti-reflective coating on inner surface
LumiBrite:     LumiBrite on hands, index(es) and bezel
Case size:     Diameter 43.8mm Lug-to-lug 51.5mm Thickness 13.8mm
Band width:     23mm
Clasp type:     Three-fold clasp with secure lock & push button release, solid & slide adjuster
The perimeter of Band:     185mm



Price incl. VAT   12'000 CHF

 ------------------------------
